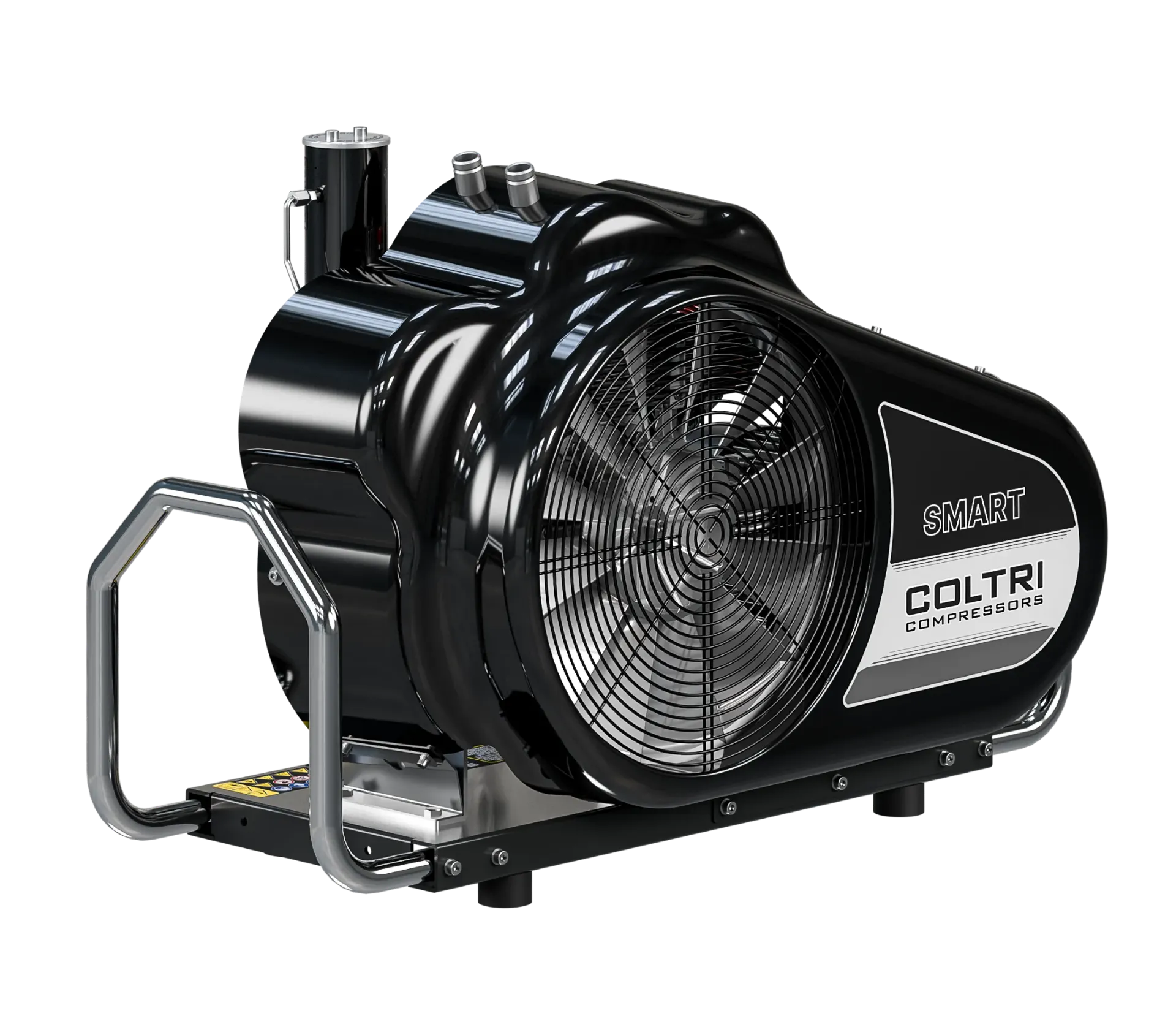

SMART 235 ET
SC002022 - Three-phase 230 V - 50 Hz
SC002023 - Three-phase 230 V - 60 Hz
SC002024 - Three-phase 400 V - 50 Hz
SC002025 - Three-phase 440 V - 60 Hz
The SMART range offers the hardwearing mid-range pump unit and in this instance matched with a robust three-phase motor. The compressors are practical and portable. Available option of remote panel with interstage pressure gauges, hour meter, adjustable pressure switch, automatic condensate drain and autostop. There are 2 filling outlets with option of 232 Bar or 300 Bar filling.
Standard Equipment
- 2 off hoses with filling connections
- Pressure Maintaining Valve (PMV)
- Maxifilter filtration
CHARGING RATE
l/min - 235
m3/h - 14.1
cfm - 8.3
FILLING TIME (10 Litre cylinder 0 -200 Bar(g))
8.30min
MOTOR POWER
4kW / 5.5Hp Single-phase electric
WORKING PRESS. MAX.
bar - 330
psi - 4786
WEIGHT & DIMENSIONS
(W x D x H) 100 x 46 x 70 cm
Dry Weight - 95 kg
£ 0.00
£ 0.00
(Tax excluded)
-
DRIVE & MOTOR POWERS
-
COLOUR - Black
-
BRAND
