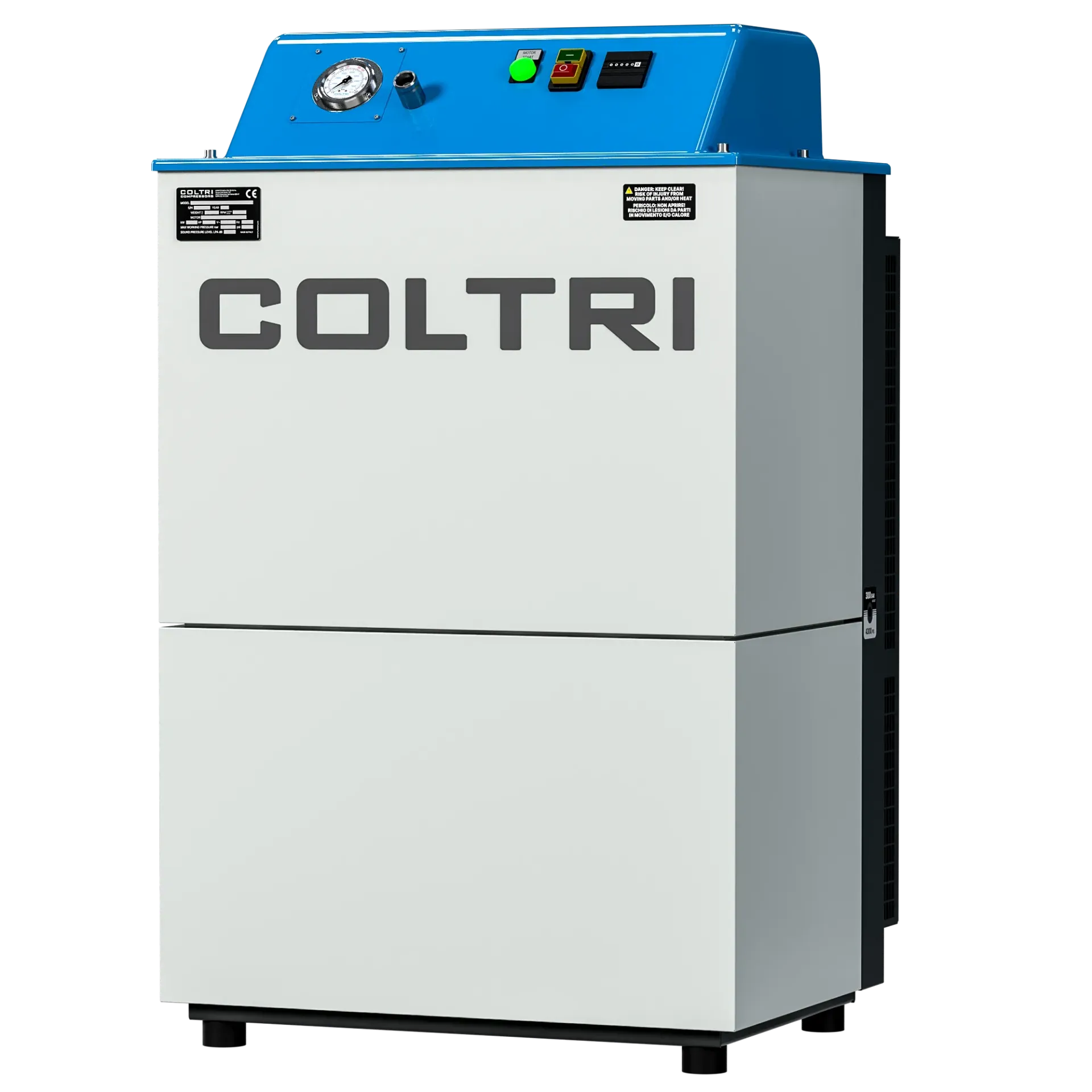

MINI SILENT 100
MINI SILENT 100 EM
SC000145 - Single-phase 230 V - 50 Hz
SC000146 - Single-phase 230 V - 60 Hz
MINI SILENT 100 ET
SC000148 - Three-phase 400 V - 50 Hz
The Mini Silent compressor is designed to be utilised where quiet operation is critical, it does this without compromising on performance. The large cabinet offers quiet operation whilst also enabling the use of the larger Maxifilter filtration, which is used on the Ergo and Mark III Silent units. It has an integrated control panel with hour meter and automatic condensate drain and autostop fitted as standard, a single outlet hose with choice of 232 Din or 300 Din fill valve is included.
Available with both single-phase and three-phase power options.
Standard Equipment
- 1 off hose with filling connections
- Pressure Maintaining Valve (PMV)
- Automatic switch-off
- Automatic condensate drain with collection tank
- Maxifilter filtration
CHARGING RATE
l/min - 100
m3/h - 6
cfm - 3.5
FILLING
TIME (10 Litre cylinder 0 -200 Bar(g))
20min
MOTOR POWER
2.2kW / 3Hp Single-phase electric
WORKING
PRESS. MAX.
bar - 330
psi - 4786
WEIGHT & DIMENSIONS
(W x D x H) 71.5 x 67 x 110 cm
Dry Weight - 84.5 kg
£ 0.00
£ 0.00
(Tax excluded)
-
DRIVE & MOTOR POWERS
-
COLOUR - Blue
-
