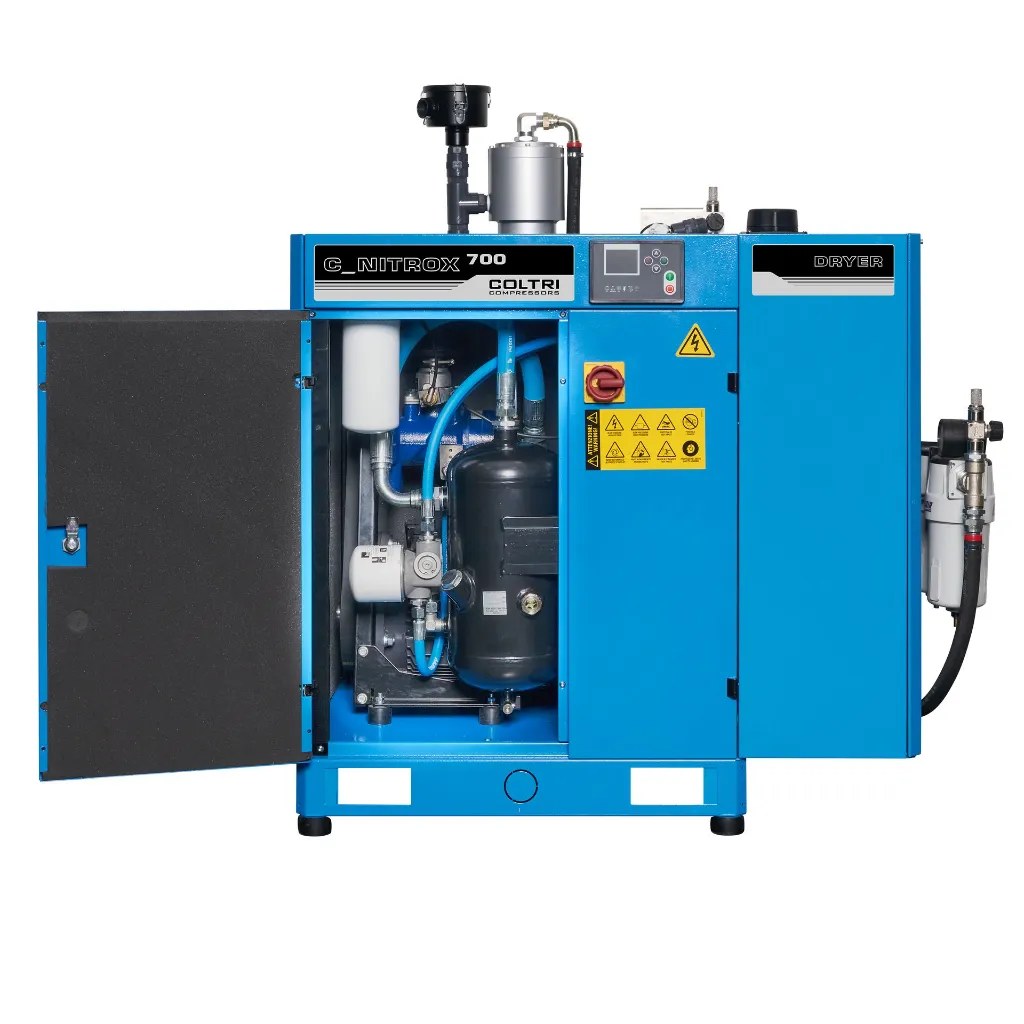

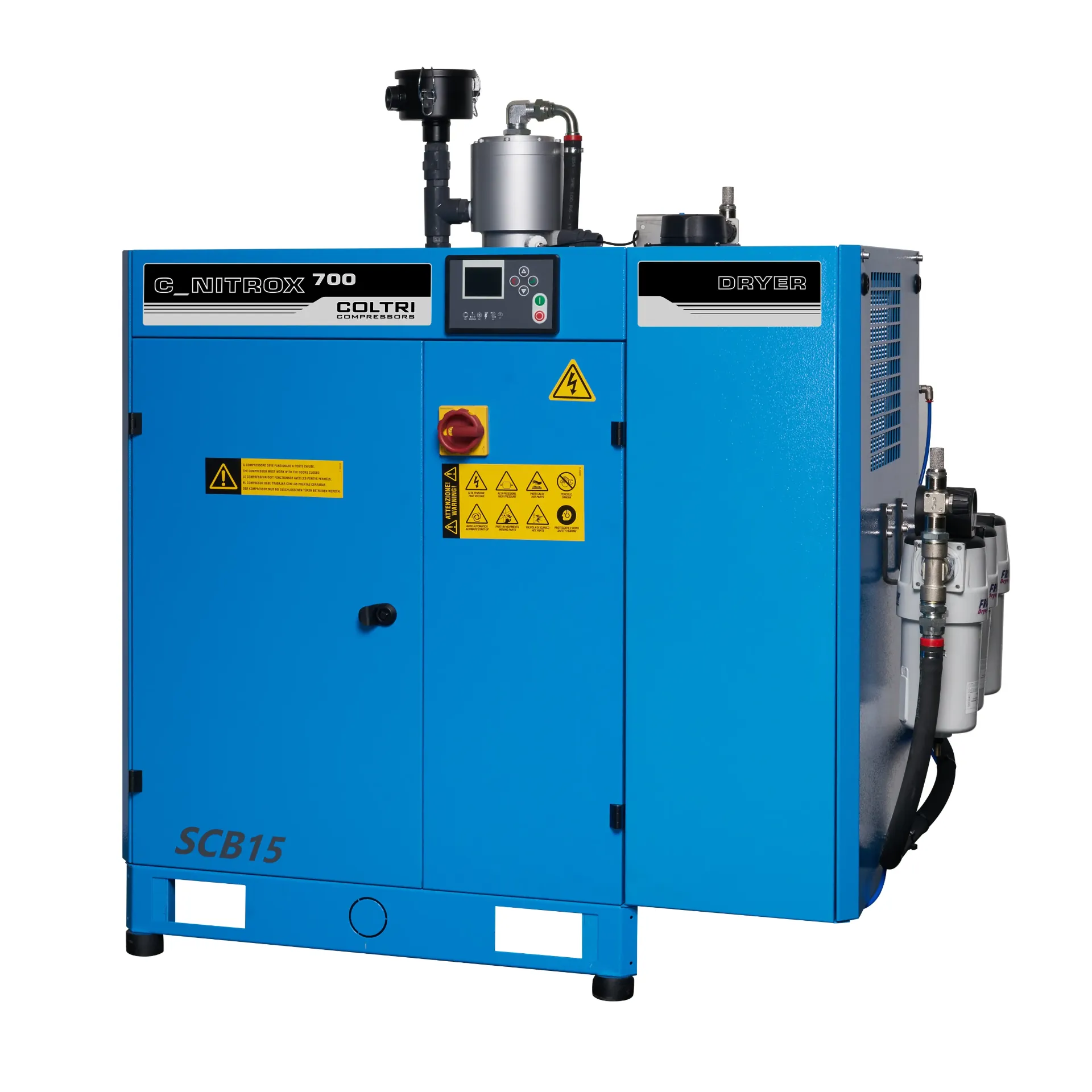

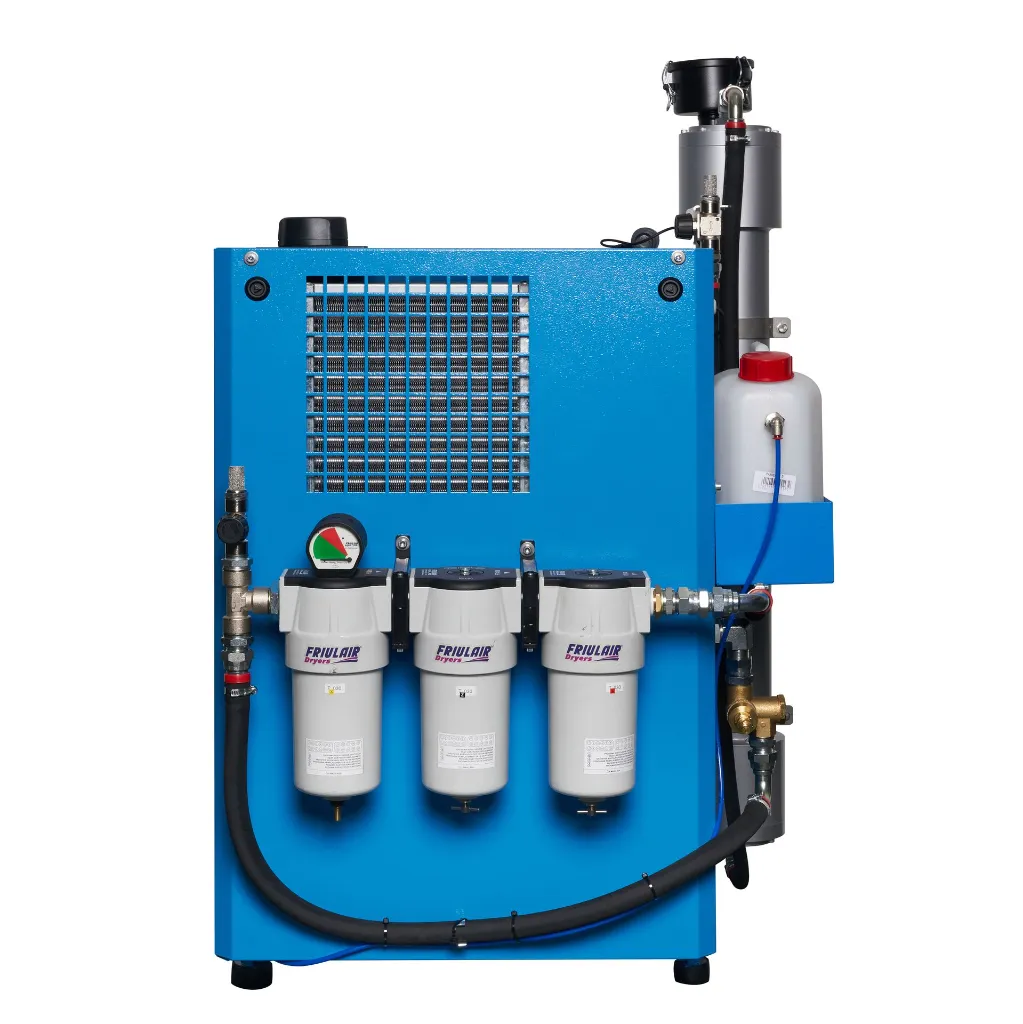

C-NITROX 700 LOW PRESSURE MEMBRANE COMPRESSOR
C‑NITROX 700 is a heavy‑duty industrial screw compressor engineered to deliver a consistent 12‑bar air supply to the OXYSEP 7‑15‑40 oxygen membrane system, which separates nitrogen and oxygen to produce enriched air containing up to 40% oxygen.
This oxygen‑enhanced air can then be compressed to 232 bar when paired with a compatible high‑pressure compressor, making the system ideal for applications requiring stable, adjustable nitrox output.
A conveniently positioned top‑mounted control valve allows operators to fine‑tune the oxygen concentration up to the 40% maximum. The integrated oxygen analyser provides real‑time verification, ensuring precise adjustment and safe, reliable performance.
Standard Equipment
- Automatic condensate drain
- 2 analyzers
- Thermostat
- 1 OXYSEP 7-15-40 OXYGEN Membrane
% O2 | 36% | 40% | 40% |
l/min HP compressor to be connected1 | (Heavy Duty 750)2 750 l/min 45m3/h 26.5 cfm | (Heavy Duty 650)2 650 l/min 39m3/h 23 cfm | (Heavy Duty 450)2 450 l/min 27m3/h 15.9 cfm |
-
DRIVE & MOTOR POWERS
