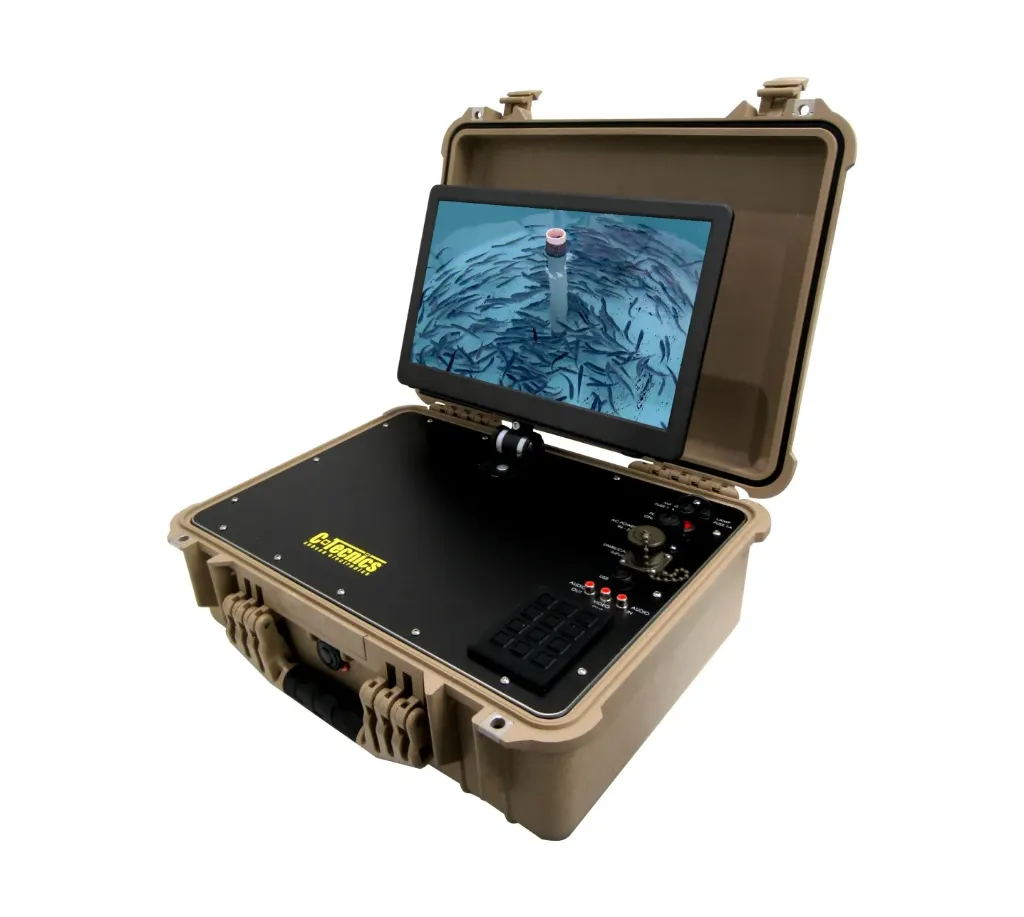

E-VISION SURFACE CONTROL UNIT

The E-Vision is a fully integrated diver video system designed for reliable recording, playback, and real-time monitoring in demanding underwater environments. Equipped with a built-in 500GB hard drive, it enables seamless video capture and storage directly on-site.

The system features LED lamp dimming control and an external audio input, allowing diver communications to be recorded and synchronised alongside video footage for complete operational visibility.

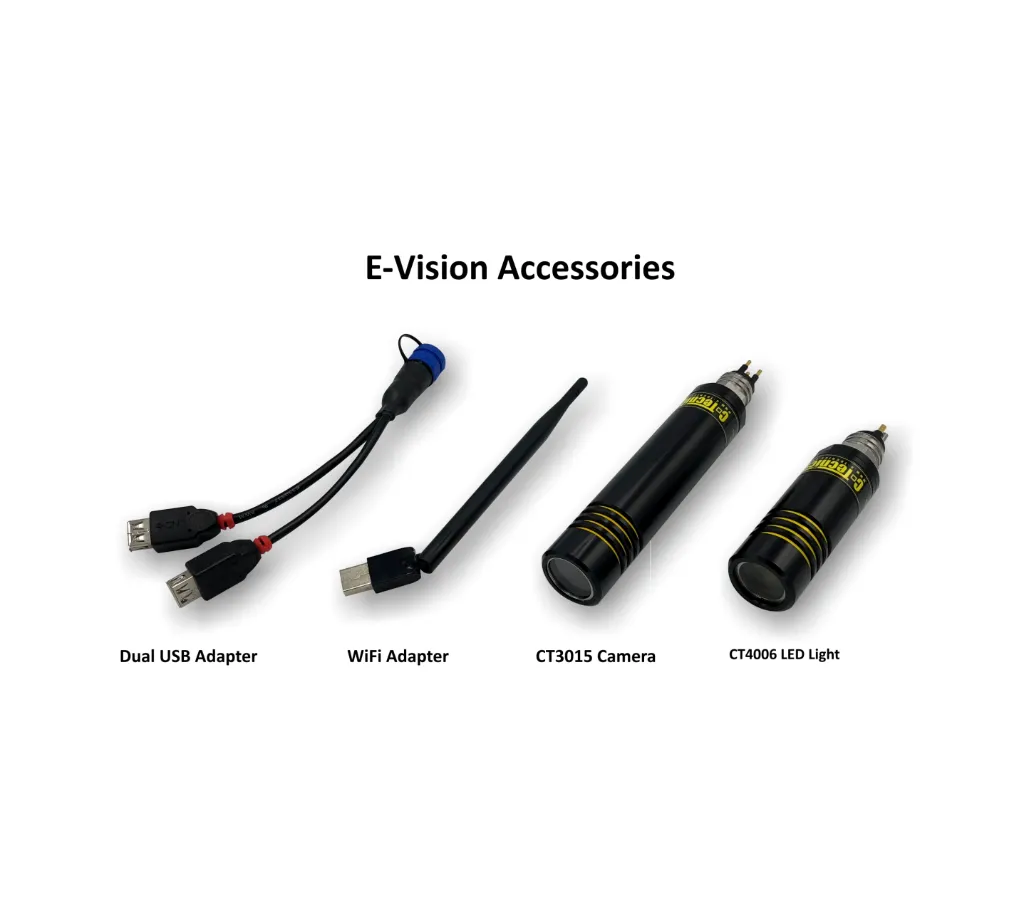

A 15” foldable LCD monitor delivers a clear, anti-glare display for both live video and playback, ensuring excellent visibility in all working conditions. When paired with the C-Tecnics CT3015E camera and CT4006 LED light, the E-Vision provides exceptional image quality.

Supporting up to 300 metres of C-Tecnics camera and lighting umbilical, the system offers flexibility for a wide range of diving operations. Housed within a rugged Peli Case, the E-Vision is built to withstand the harshest environments encountered on dive sites.

The E-Vision is also available in a rack-mounted version (E-Vision R) and can be configured for twisted pair video transmission systems (optional).

• Dimensions: 524 x 428 x 206 mm
• Weight: 8kg
• IP rating: IP65
• Power Supply: 96-264V AC
• Operating Teperature: -20°C to +60°C
• Storage Temperature: 0°C to +50°C
• Video Channels: 1 or 2
• Command Input: via 12-key keypad
• Keyboard Input: via USB (keyboard not included)
• Display: 15" LCD Display
• Storage:  500GB HDD
• Overlay: Date/Time/Free Text
• Video Format: PAL/NTSC
• File Format: MP4
• Snapshot File Format: JPEG
• Audio Input: via RCA
• Lamp Dimming Control
• WiFi Streaming: Close range via wireless adapter (included)
• Operating System: Sensoray OEM 4011 DVR
