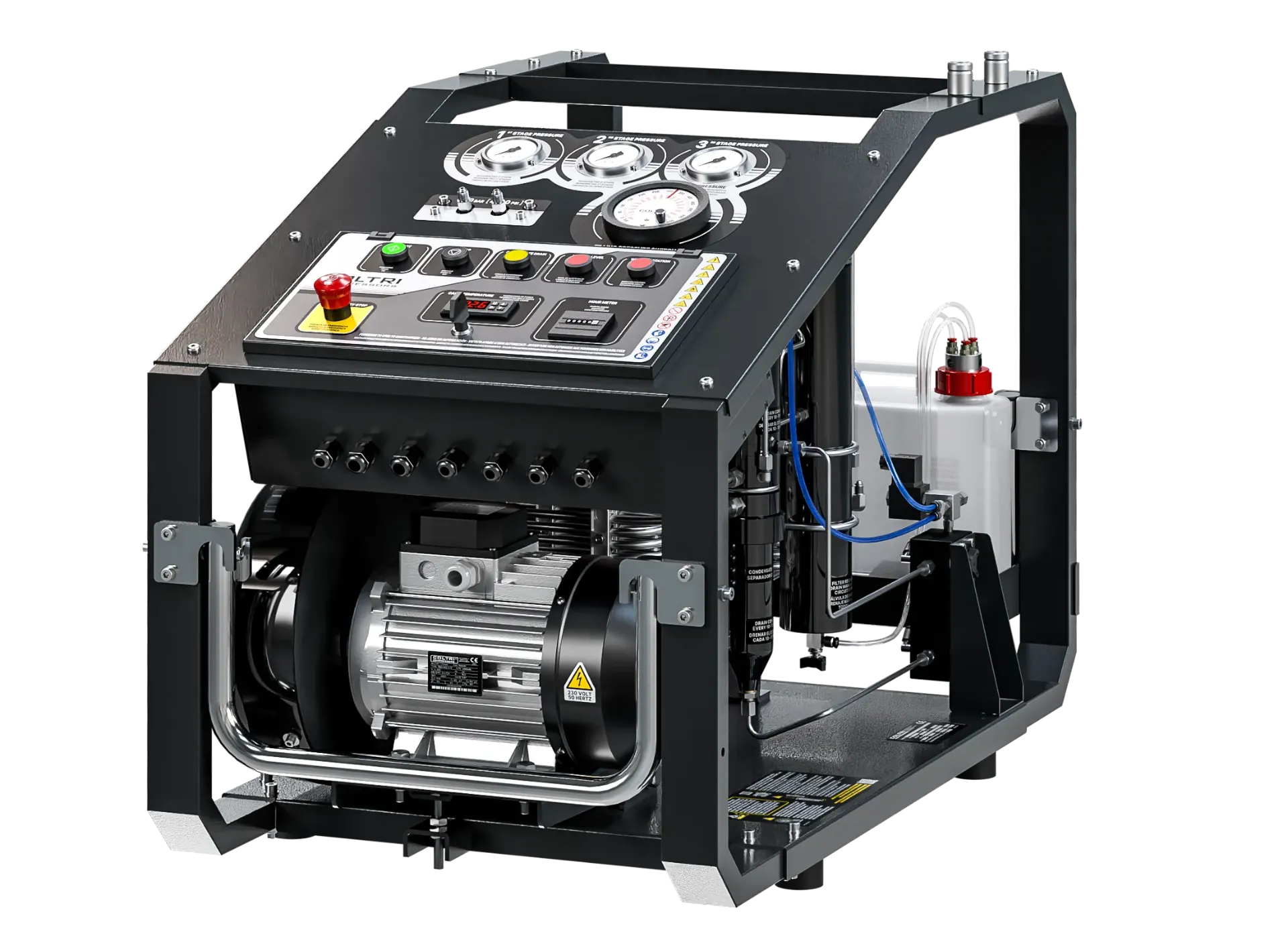

ERGO 235 ET
SC002003 - Three-phase 230 V - 50 Hz
SC002004 - Three-phase 230 V - 60 Hz
SC002005 - Three-phase 400 V - 50 Hz
SC002006 - Three-phase 440 V - 60 Hz
The ERGO range offers a hardwearing mid-range pump unit and in this instance matched with a robust 4kW three-phase motor. The compressors are practical and portable, equipped with a control panel with interstage pressure gauges, hour meter, adjustable pressure switch, automatic condensate drain and autostop. There are 2 filling outlets with option of 232 Bar or 300 Bar filling.
Standard Equipment
- 2 off hoses with filling connections
- Pressure Maintaining Valve (PMV)
- Interstage pressure gauges
- Cabin temperature shut-off
- Phase controller (prevents wrong rotation)
- Adjustable pressure switch with automatic switch-off
- Oil sight glass with low-level shut-off
- Automatic condensate drain with collection tank
- Maxifilter filtration
CHARGING RATE
l/min - 235
m3/h - 14.1
cfm - 8.3
FILLING
TIME (10 Litre cylinder 0 -200 Bar(g))
8.30 min
ENGINE POWER
4kW / 5Hp Three-phase electric
WORKING
PRESS. MAX.
bar - 330
psi - 4786
WEIGHTS & DIMENSIONS
(W x D x H) 112 x 63 x 77 cm
Dry Weight - 159 kg
£ 0.00
£ 0.00
(Tax excluded)
-
DRIVE & MOTOR POWERS
-
COLOUR - Black
-
