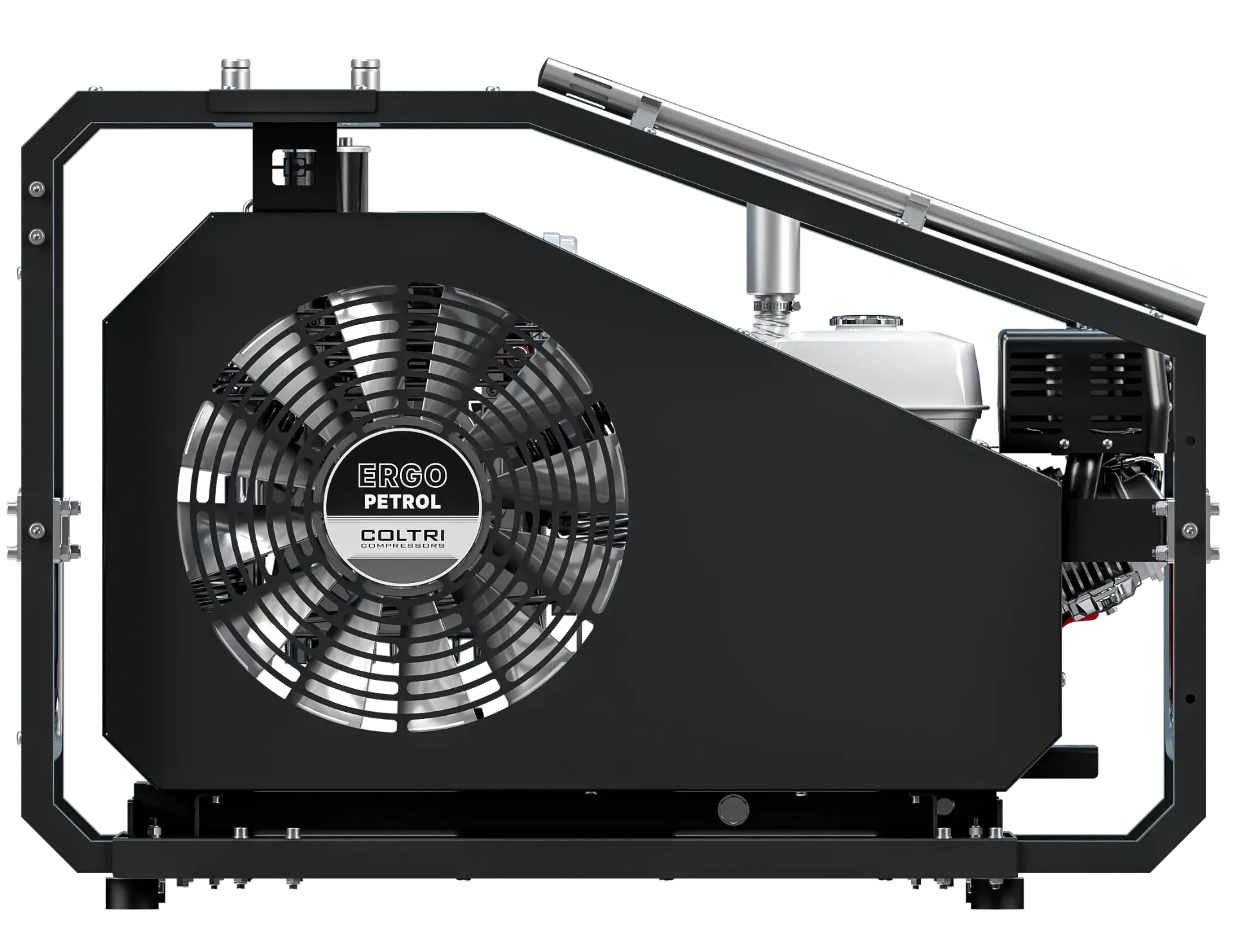

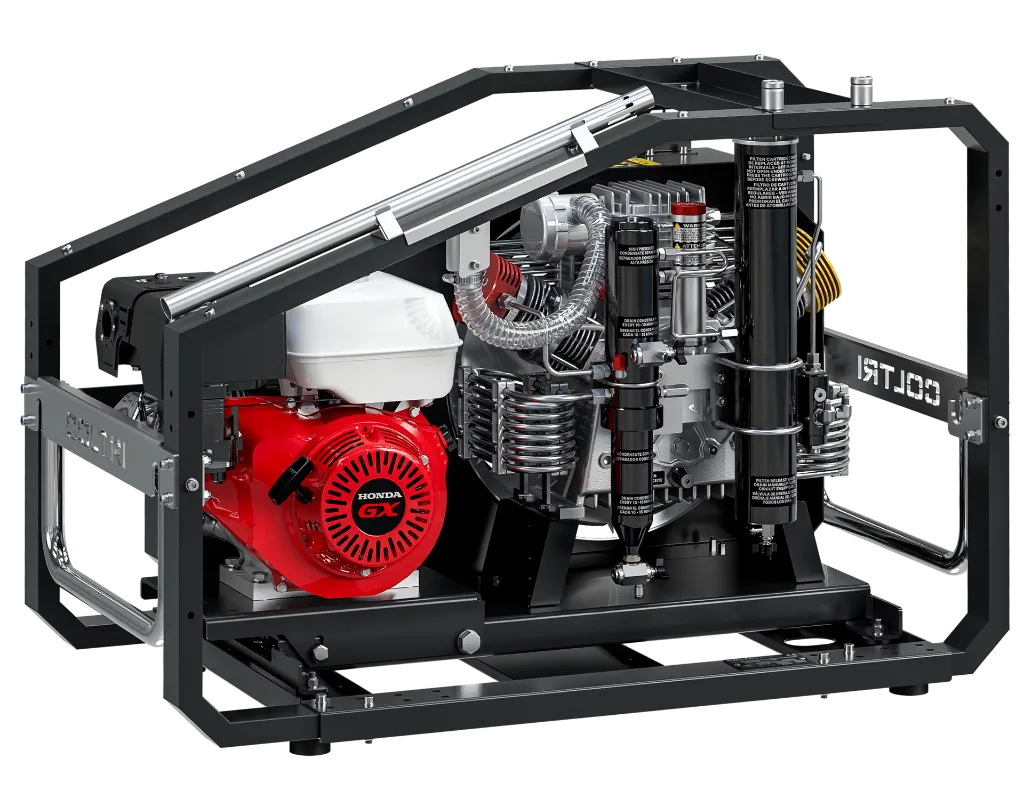

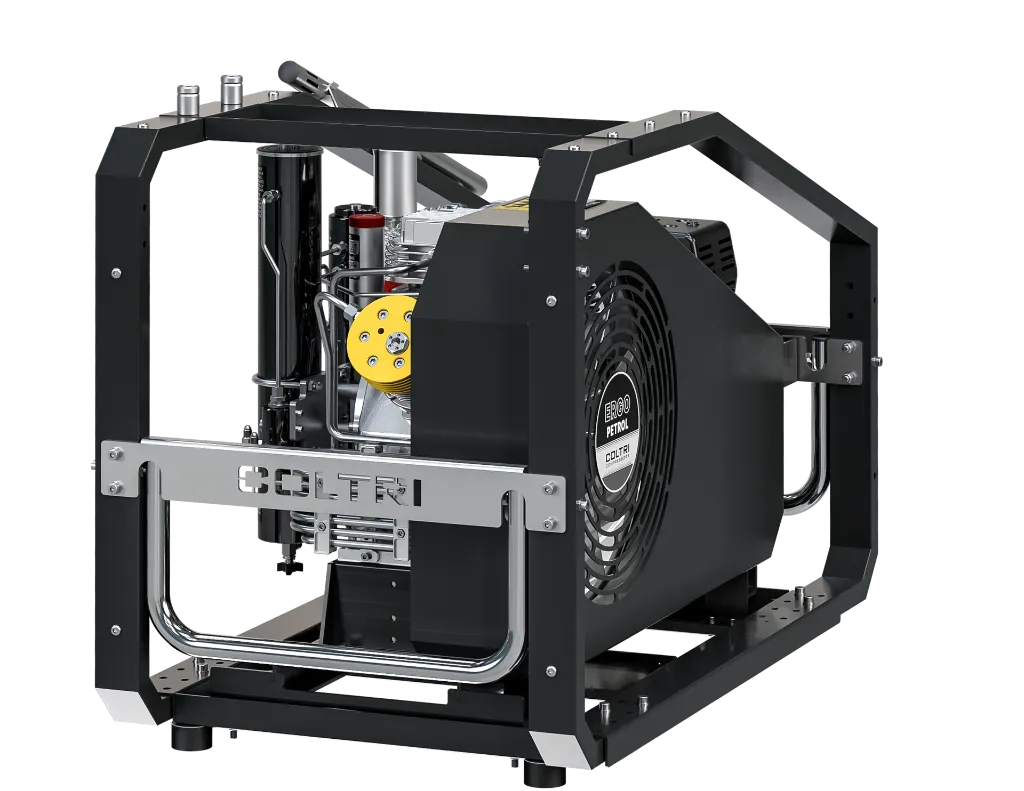

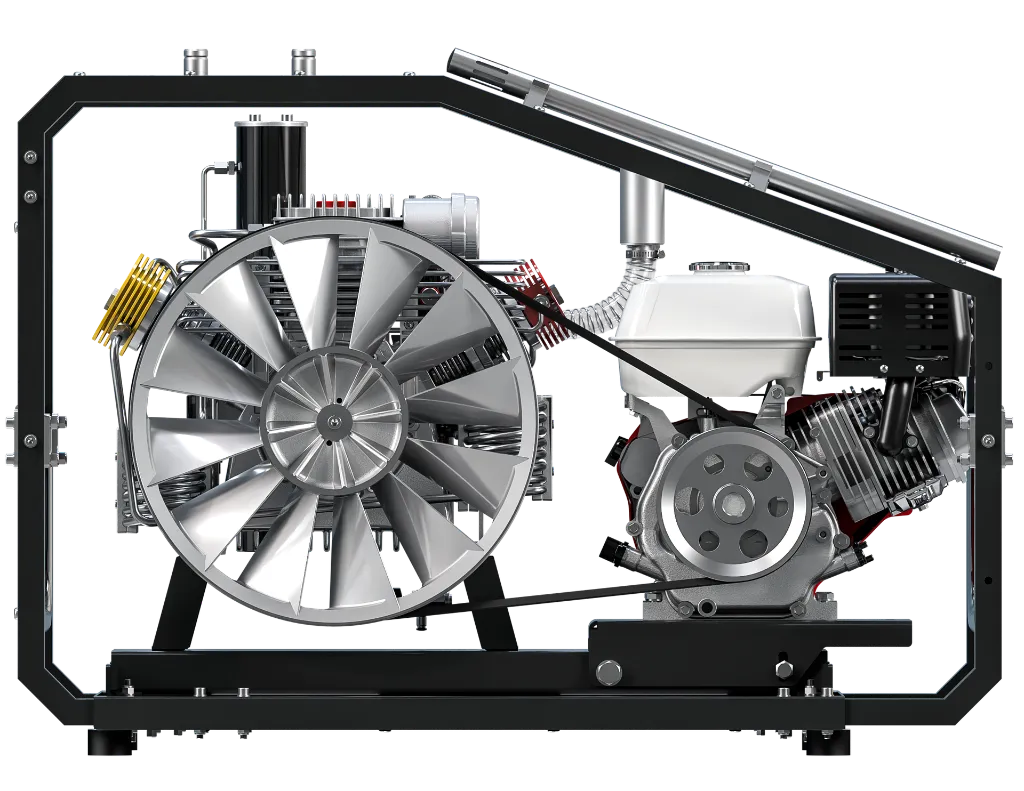

ERGO 270 SH

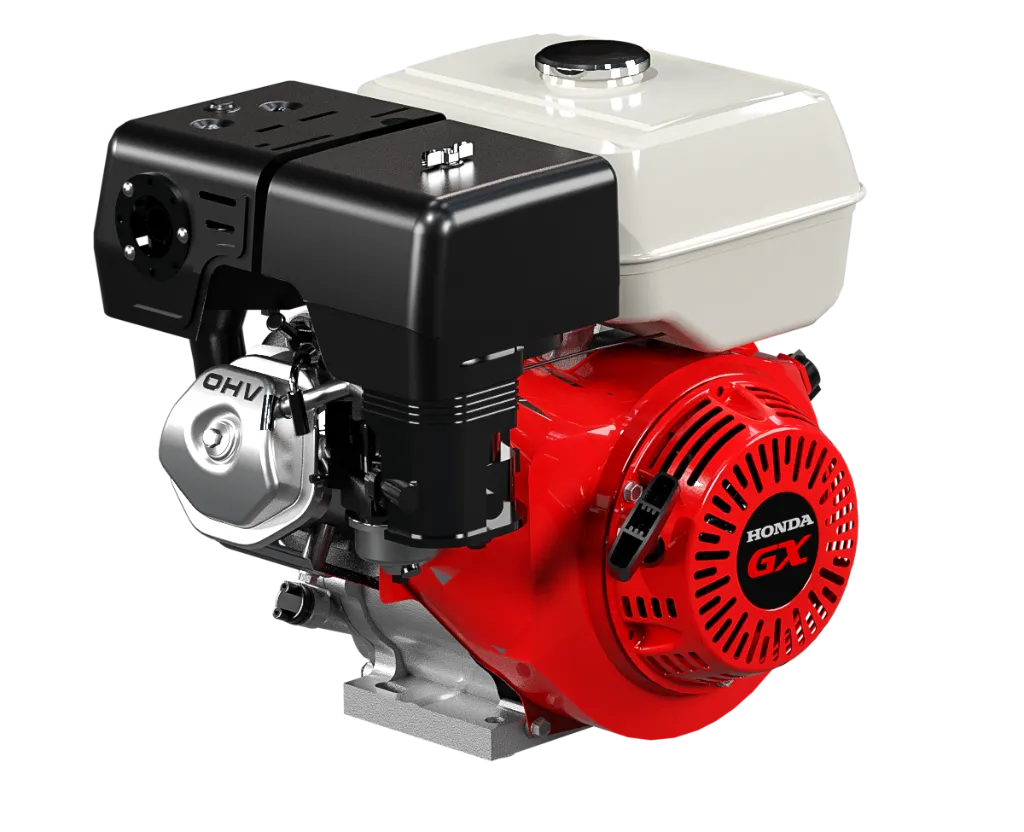

SC002000 - Honda GX 270
SC002069/EL - Honda GX 270 Fully Electric

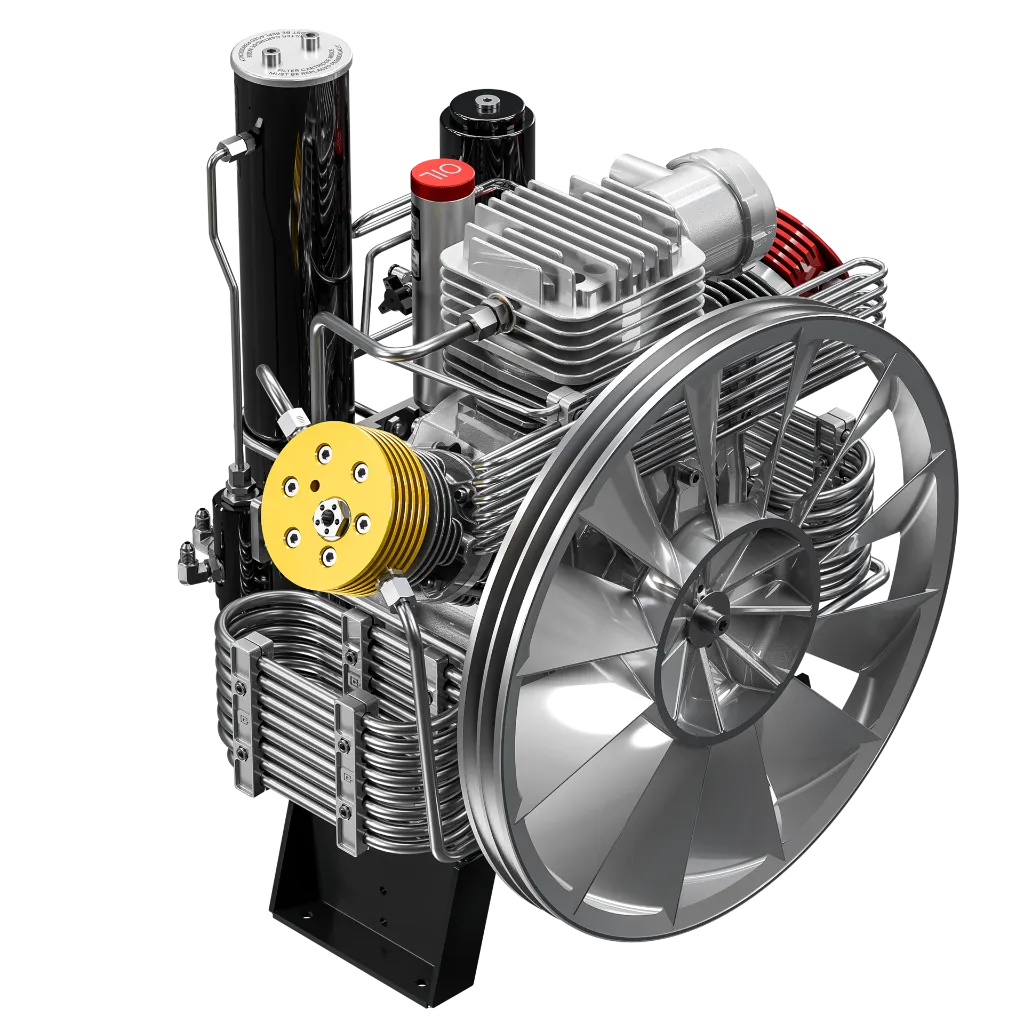

The ERGO range offers a hardwearing mid-range pump unit and in this instance matched with the hugely reliable Honda GX270 petrol engine. The compressors are practical and portable, equipped with a monitoring panel with interstage pressure gauges. There are 2 filling outlets with option of 232 bar or 300 bar filling. The compressor has a maximum working pressure of 420 bar for industrial applications.
Standard Equipment
- 2 off hoses with filling connections
- Pressure Maintaining Valve (PMV)
- Interstage pressure gauges
- Oil sight glass with low-level shut-off
- Maxifilter filtration
Available Options on fully automatic FA
- Electric start with battery
- Fixed pressure switch with automatic stop
- Automatic condensate drain with collection tank
Other Options
- C-Monitor
- Digital hour meter
- Wheel kit
CHARGING RATE
l/min - 270
m3/h - 16.2
cfm - 9.5
FILLING
TIME (10 Litre cylinder 0 -200 Bar(g))
7.2 min
WORKING
PRESS. MAX.
bar - 420
psi - 6100
WEIGHT & DIMENSIONS
(W x D x H) 112 x 63 x 77 cm
Dry Weight - 121 kg
£ 0.00
£ 0.00
(Tax excluded)
-
DRIVE & MOTOR POWERS
-
COLOUR - Black
-
