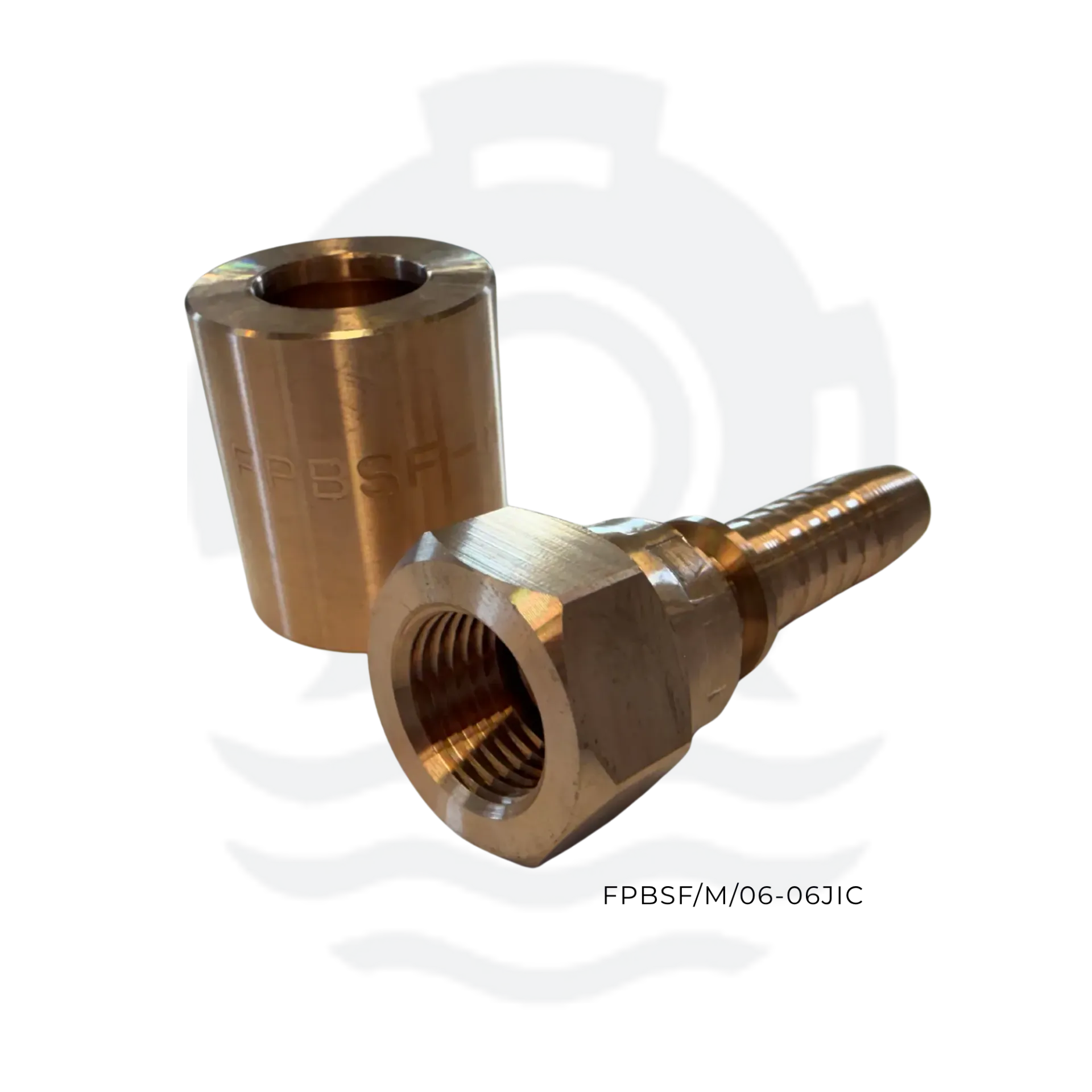

6 JIC PHOSPHOUR BRONZE SWAGEABLE HOSE END

FPBSF/M/06-06JIC

Commonly referred to as JIC fittings, these metal-to-metal sealing type fittings have a 37° flare (sealing surface angle) and straight Unified National Fine Threads (UNF). The original design

specification for the fittings comes from the Society of Automotive Engineers (SAE) and these fittings are the most widely used.

Material - Phosphor Bronze

Material standard - PB102/CW451K-

Thread size - 9/16”-18 UNF

Hose related products -

Fibrolite - FLT06/R - 3/8”

Fibroline - FBL06G / FBL06H - 3/8”

Fibroflex - FDH06G*/ FDH06H  - 3/8”

*DNV approved
