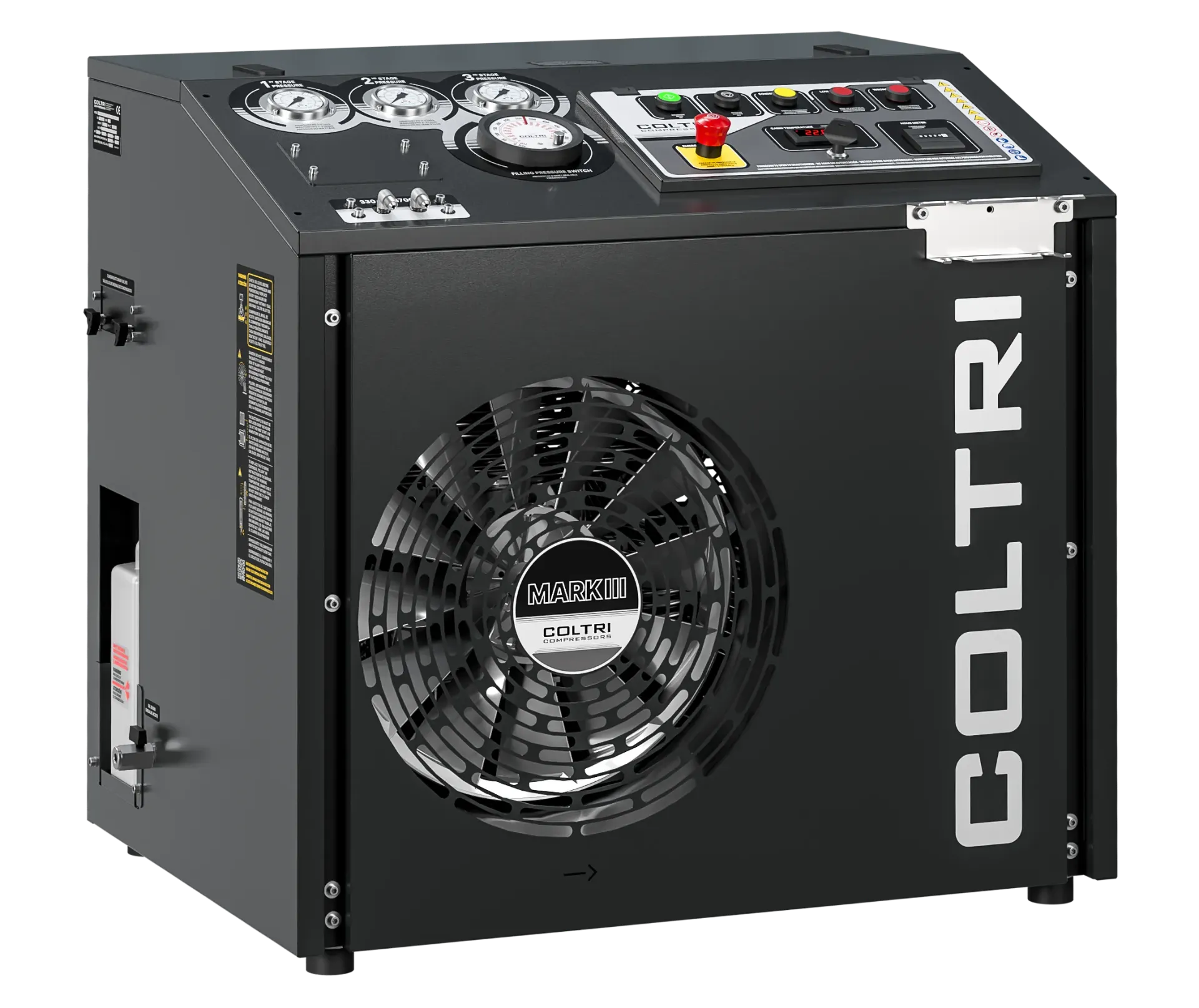

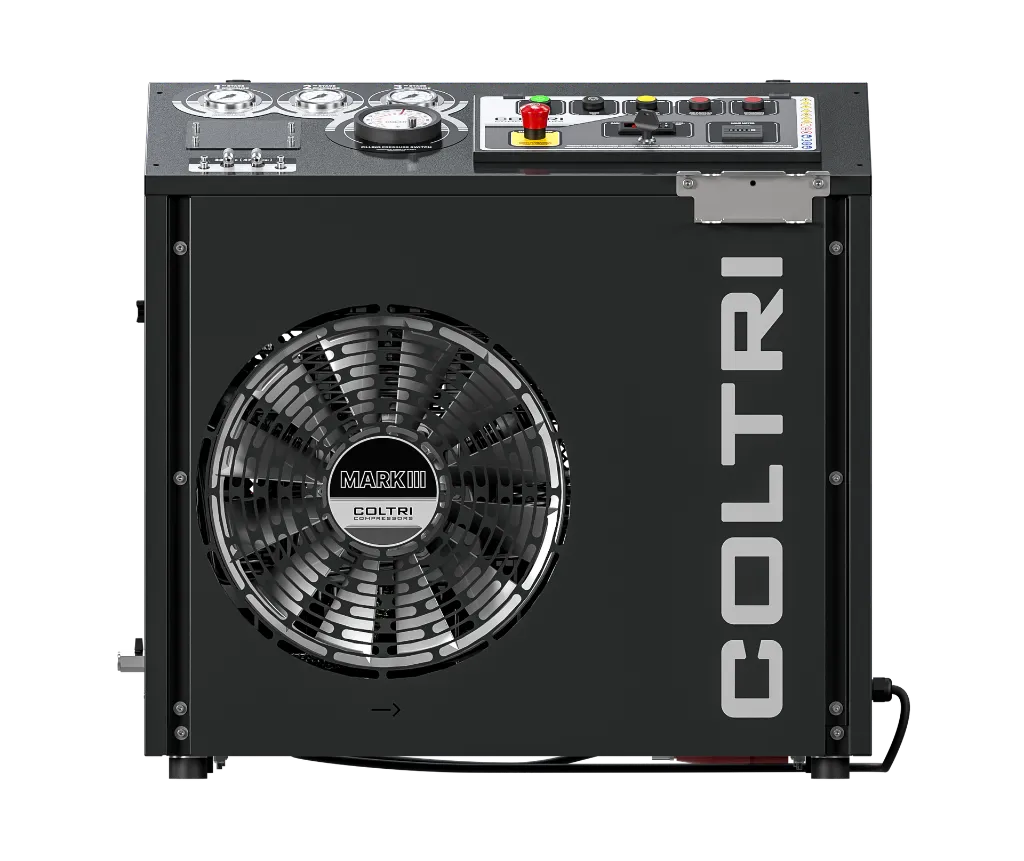

MARK III SILENT 315 ET
SC002047 - Three-phase 400 V - 50 Hz
SC002048 - Three-phase 230 V -60 Hz
SC002049 - Three-phase 440 V - 60 Hz

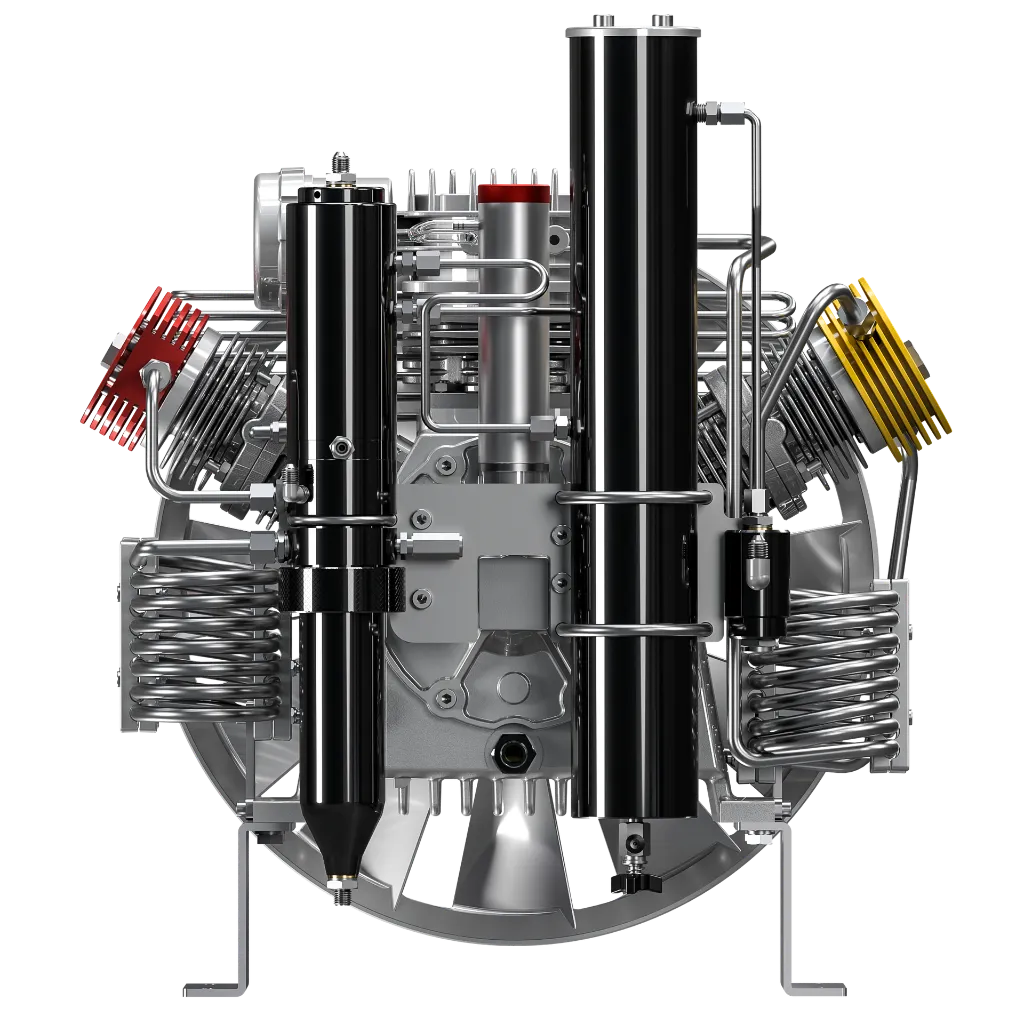

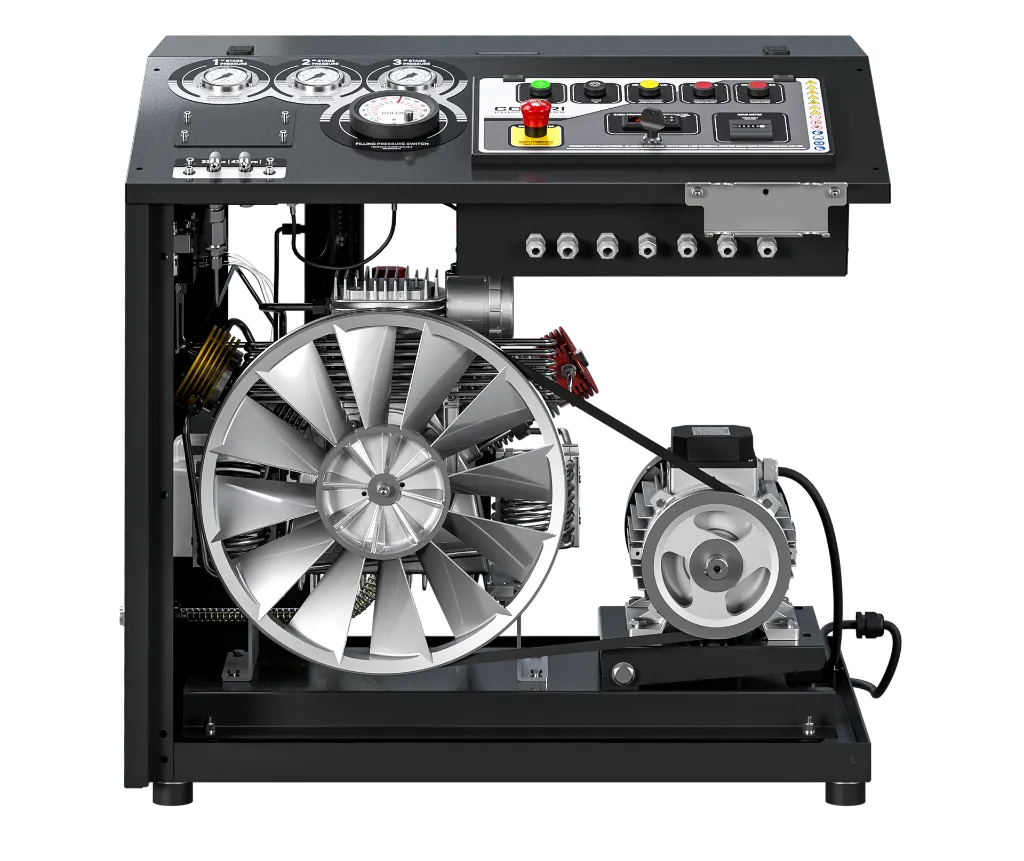

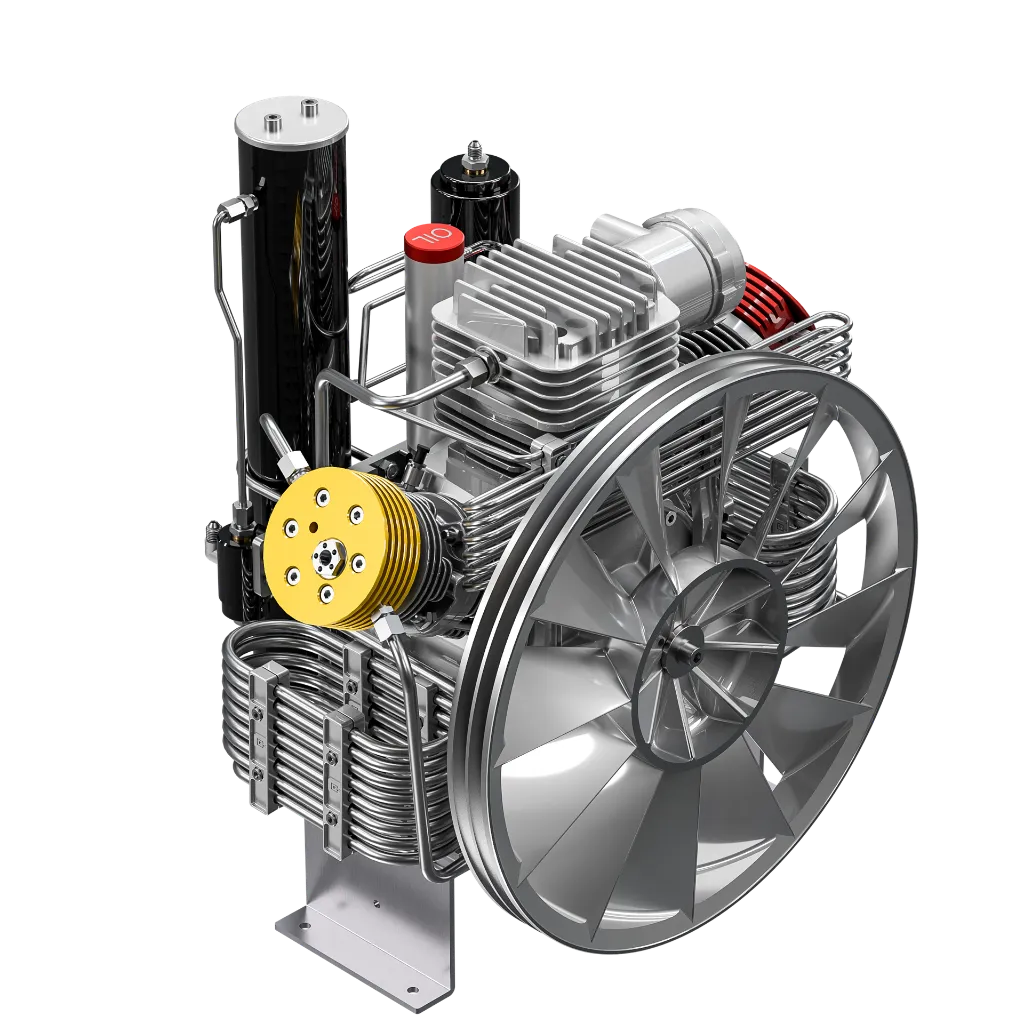

The Mark III Silent is the most popular model for dive clubs and shops, offering a great balance between excellent performance, reliability and cost. An incredibly reliable pump unit, in this instance matched with a robust Three-phase motor. The compressors are housed in an acoustic cabinet and equipped with a control panel with interstage pressure gauges, hour meter, adjustable pressure switch, automatic condensate drain and autostop. There are 2 filling outlets with option of 232 Bar or 300 Bar filling.
Standard Equipment
- 2 off hoses with filling connections
- Pressure Maintaining Valve (PMV)
- Interstage pressure gauges
- Cabin temperature shut-off
- Phase controller (prevents wrong rotation)
- Adjustable pressure switch with automatic switch-off
- Oil sight glass
- Automatic condensate drain with collection tank
- Maxifilter filtration
CHARGING RATE
l/min - 315
m3/h - 18.9
cfm - 11.1
FILLING
TIME (10 Litre cylinder 0 -200 Bar(g))
6.20 min
ENGINE POWER
5.5kW / 7.5Hp Three-phase electric
WORKING
PRESS. MAX.
bar - 330
psi - 4786
WEIGHT & DIMENSIONS
(W x D x H) 103 x 73 x 91 cm
Dry Weight - 162 kg
£ 0.00
£ 0.00
(Tax excluded)
-
DRIVE & MOTOR POWERS
-
COLOUR - Black
-
BRAND
