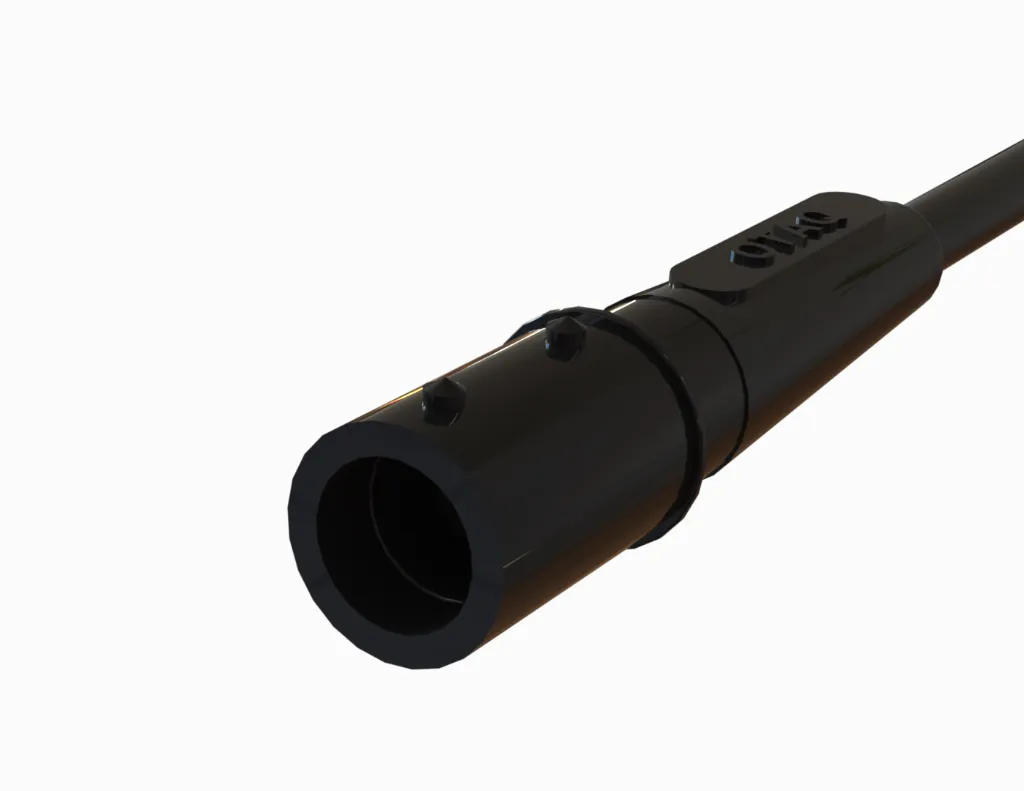

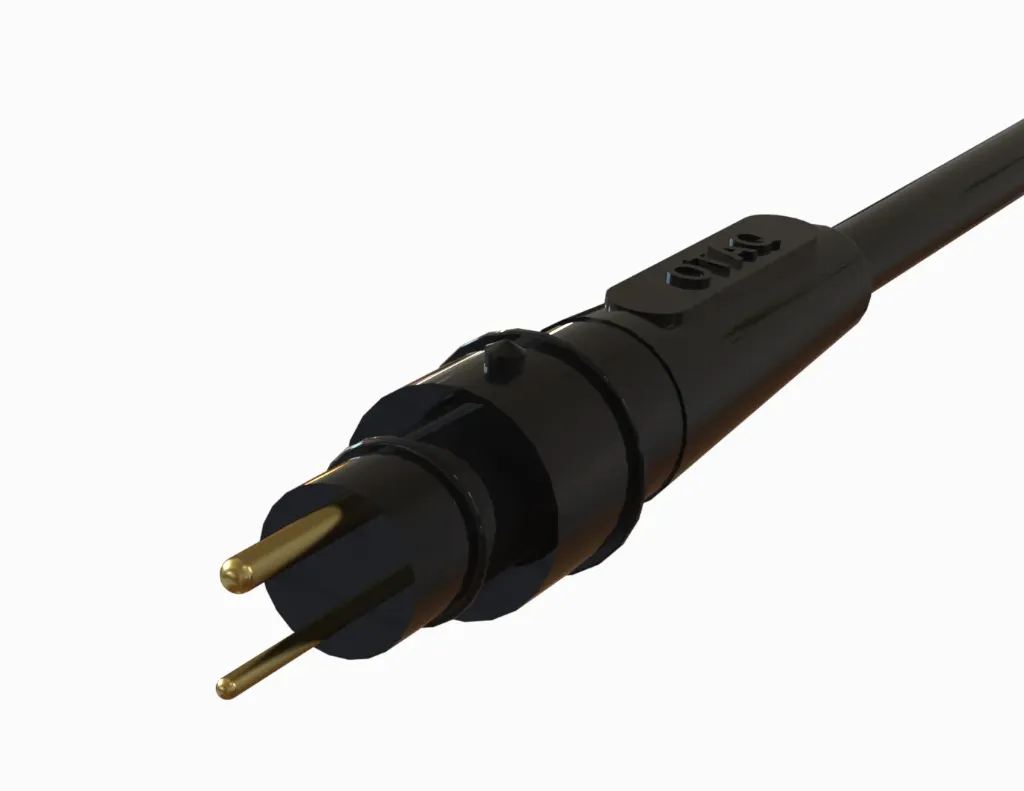

MARSH MARINE CONNECTORS
OTAQ rubber-moulded Marsh Marine connectors are manufactured using fully waterproof-grade neoprene (or polyurethane), both of which offer high UV resistance. These materials provide excellent electrical insulation properties along with high tensile strength and superior tear resistance, ensuring reliable performance in demanding marine environments.
Electrical Specification
Voltage Rating: 300vdc – 600vdc
Insulation Resistance: >10 GΩ @ 1000vdc
Mated Contact Resistance: 2.5 Mili Ω @ 1 AMP
Material Specification
Body Material: Neoprene or Polyurethane
Socket Contacts: CZ121
Pin Contacts: CZ121
Pin & Socket Gold Plating: 1um hard acid gold over typically 2.5um Nickel over Copper flash
