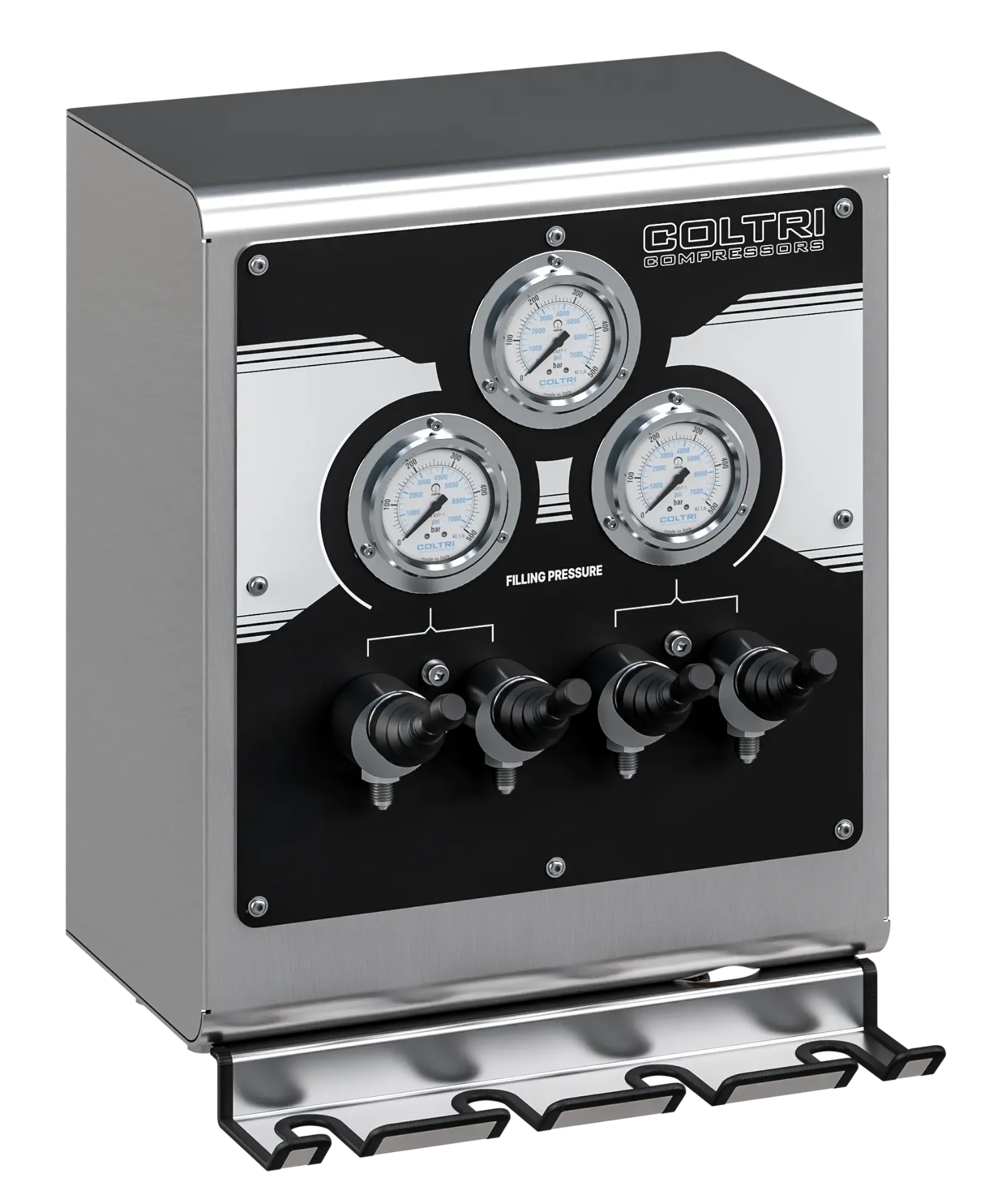

REMOTE FILLING PANEL WITH LEVER VALVE - STAINLESS STEEL
Aerotecnica Coltri fill panels offer a compact solution for the filling of up to 4 cylinders at a time. Manufactured in a stainless steel housing and available as a single pressure unit or dual pressure (232 bar / 300 bar). The option of lever valves which control the air flow to the cylinders and also act as a vent for the fill hoses once target pressure is reached. Non-lever panels utilise standard fill adaptors which perform the same functions.
Each panel is supplied with;
4 cylinder connections
1 Manometer
4 HP Whips 1.20 m – 3.9 ft
1 Filling hose HP 3 m – 9.8 ft (to connect to compressor osr storage)
SC000325/I - REMOTE FILLING PANEL SINGLE PRESSURE - STAINLESS STEEL

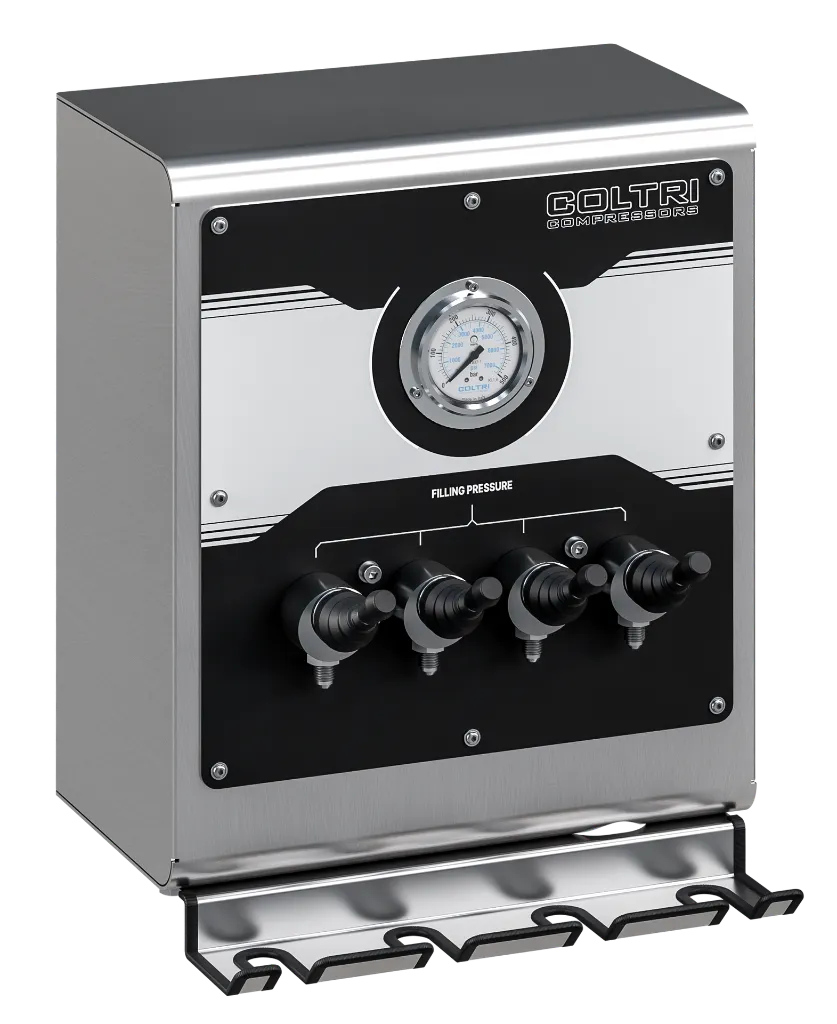

SC000327/I - REMOTE FILLING PANEL SINGLE PRESSURE WITH LEVER VALVE - STAINLESS STEEL
SC000329/I - REMOTE FILLING PANEL DOUBLE PRESSURE - STAINLESS STEEL
SC000331/I - REMOTE FILLING PANEL DOUBLE PRESSURE WITH LEVER VALVE - STAINLESS STEEL
£ 0.00
£ 0.00
(Tax excluded)
-
PRESSURE
-
LEAVER VALVE
-
BRAND
