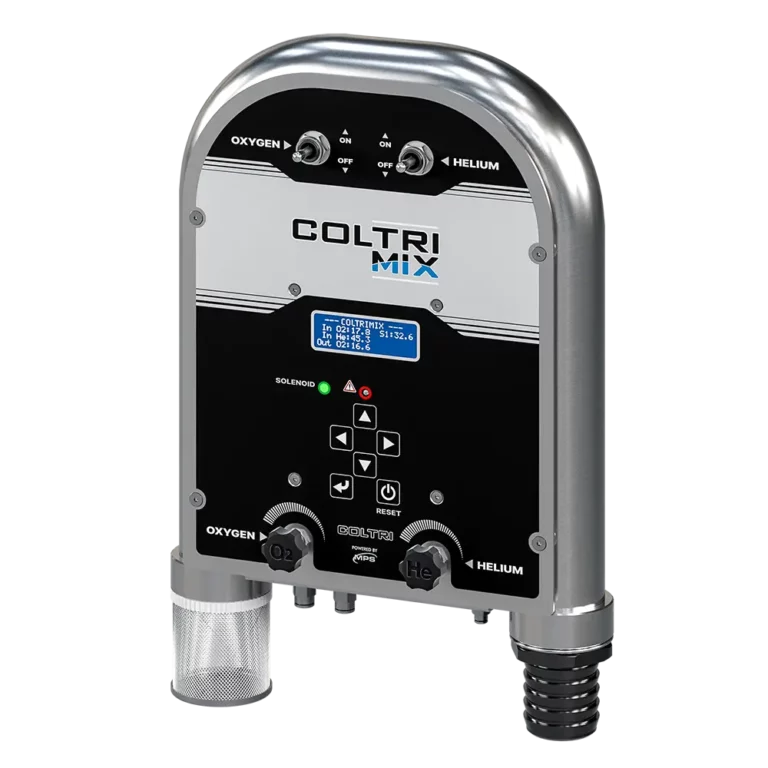

COLTRIMIX SEMI-AUTOMATIC GAS MIXING SYSTEM & INSTALLATION ACCESSORIES


ColTrimix – Smart Low‑Pressure Gas Blending for Dive Centres

ColTrimix is a next‑generation system designed to simplify the production of Nitrox and Trimix. Instead of relying on traditional partial‑pressure blending—which demands oxygen‑clean cylinders, careful topping procedures, and multiple pure‑gas tanks—ColTrimix blends gases before compressor intake using high‑efficiency static mixers.

This approach delivers precise, homogeneous mixtures with minimal waste and far greater ease of use.

Why ColTrimix

  • Produces Nitrox and Trimix at low pressure, eliminating the need for oxygen‑clean cylinders

  • Delivers fully homogenized gas mixtures ready for analysis and immediate use

  • Reduces gas loss by allowing efficient use of oxygen and helium cylinders

  • Software‑controlled mixing ensures accurate, repeatable blend percentages

  • Suitable for any dive centre seeking safer, faster, and more economical gas preparation

  • Oxygen concentration up to 40% when used with oil‑lubricated compressors

Key Features

  • External 24 V solenoid valves for enhanced electrical safety

  • Pneumatic safety valves that automatically close on excess‑gas alarms

  • Compact stainless‑steel frame for easy installation

  • High‑performance internal static mixers

  • Micrometer‑adjusted flowmeters for precise gas control

  • Integrated analysis of compressor output

How It Works

ColTrimix uses a series of static mixing elements that divide and redirect gas flow, ensuring complete homogenization before the compressor draws in the mixture. This low‑pressure method provides consistent results without the complexity of partial‑pressure blending.

Included in the ColTrimix Kit

  • ColTrimix unit

  • 24 V external solenoid valves

  • 230 V / 24 V AC power supply

  • 230–110 V / 12 V DC power supply

  • Suction filter

  • Installation, operation, and maintenance manuals

  • Stickers

Optional Mounting Kit

  • 2" / 50 mm suction hose connector

  • 50 mm internal spiral suction tube

  • Steel hose clamps

  • Cable ties

  • Transformer connection components

  • Blue/Brown/Earth electrical cables

  • Auxiliary KM1 stop contact

  • Oxygen and helium pressure reducers with fittings

  • Rilsan tubing (D8, D6, D4)

  • Gas analysis flow reducer

  • Spare oxygen sensor

  • D25 and D35 suction tubes for all compressor stages

  • Hose fittings


£ 0.00 £ 0.00
(Tax excluded)
