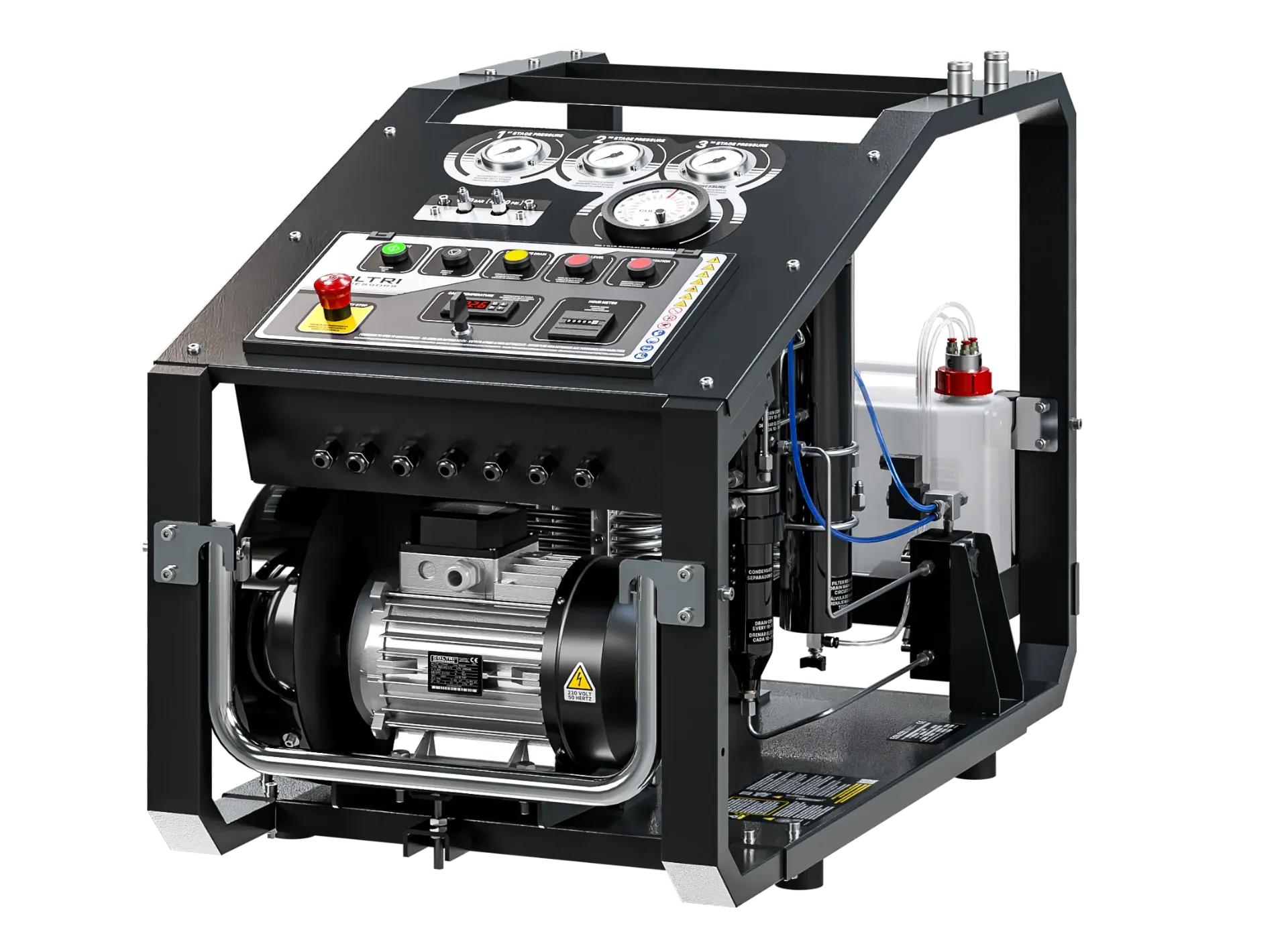

ERGO 315 ET
SC002009 - Three-phase 400 V - 50 Hz

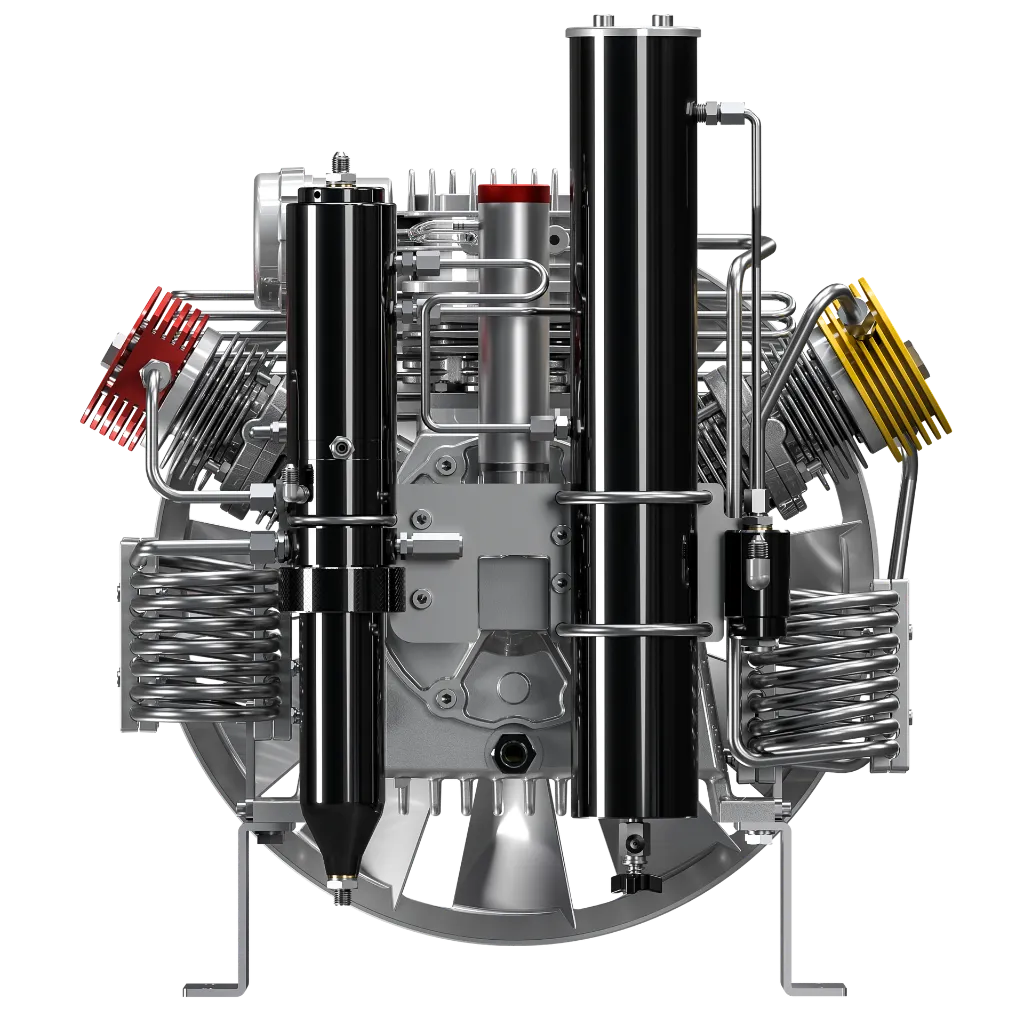

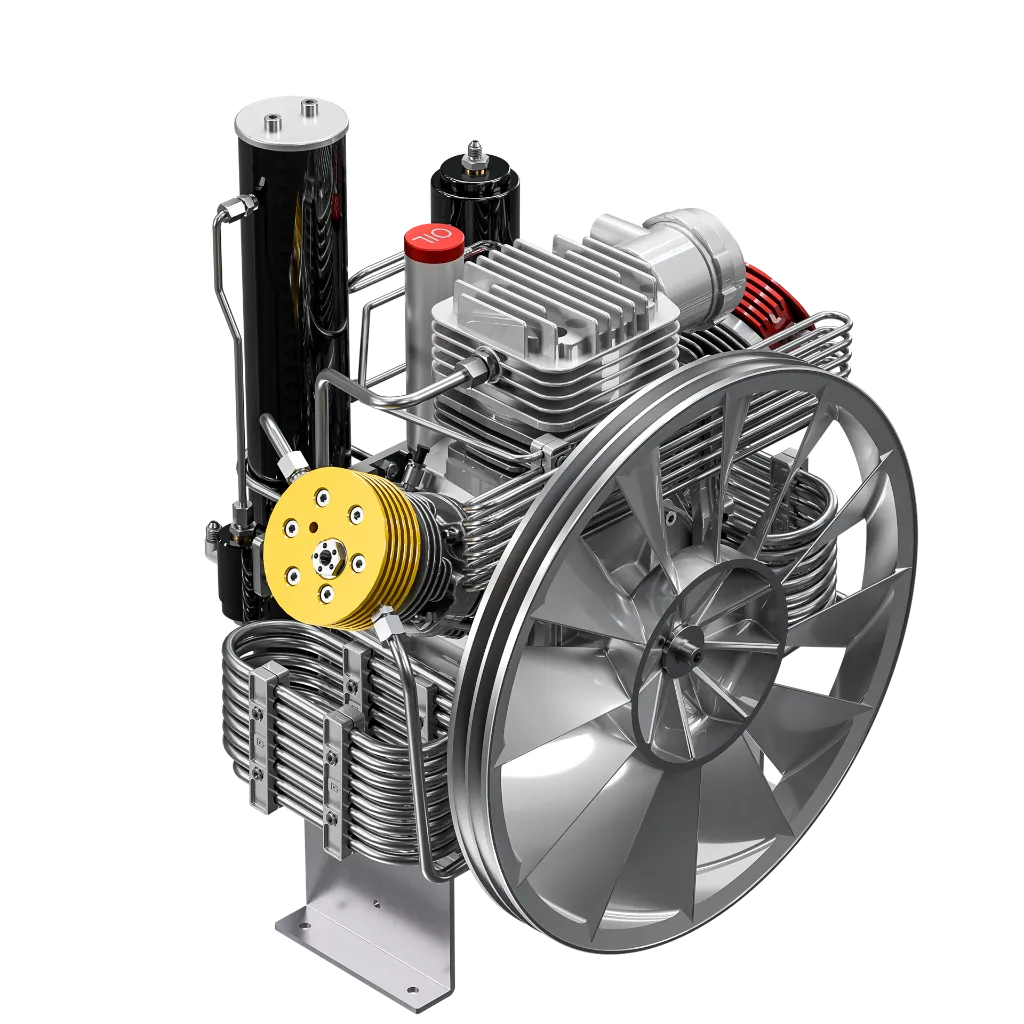

The ERGO range offers a hardwearing mid-range pump unit and in this instance matched with a robust 5.5kW three-phase motor. The compressors are practical and portable, equipped with a control panel with interstage pressure gauges, hour meter, adjustable pressure switch, automatic condensate drain and autostop. There are 2 filling outlets with option of 232 Bar or 300 Bar filling.
Standard Equipment
- 2 off hoses with filling connections
- Pressure Maintaining Valve (PMV)
- Interstage pressure gauges
- Cabin temperature shut-off
- Phase controller (prevents wrong rotation)
- Adjustable pressure switch with automatic switch-off
- Oil sight glass with low-level shut-off
- Automatic condensate drain with collection tank
- Maxifilter filtration
CHARGING RATE
l/min - 315
m3/h - 18.9
cfm - 11.1
FILLING
TIME (10 Litre cylinder 0 -200 Bar(g))
6.20 min
ENGINE POWER
5.5kW / 7.5Hp Three-phase electric
WORKING
PRESS. MAX.
bar - 330
psi - 4786
WEIGHTS & DIMENSIONS
(W x D x H) 112 x 63 x 77 cm
Dry Weight - 152 kg
