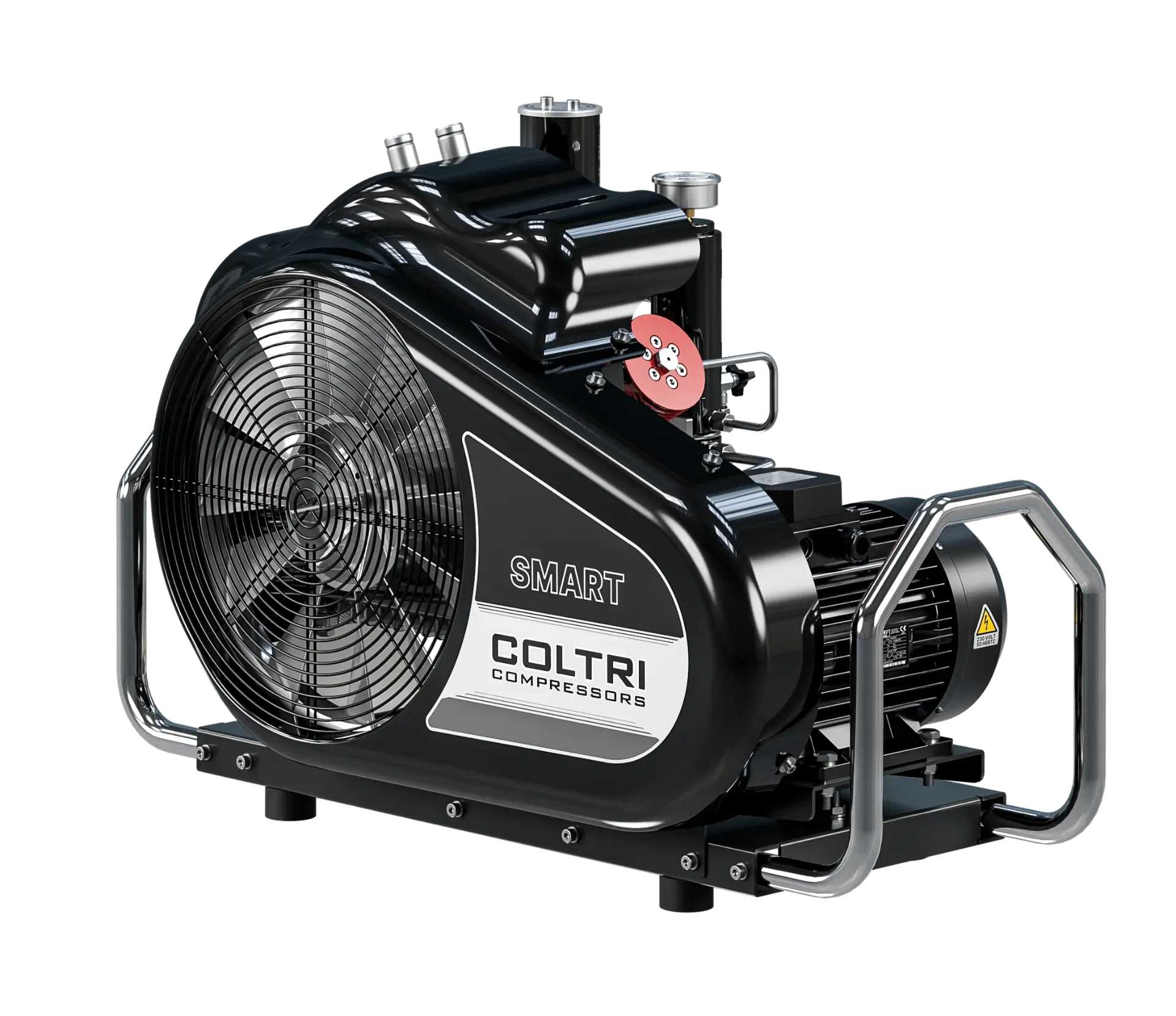

SMART 125 EM
SC002019

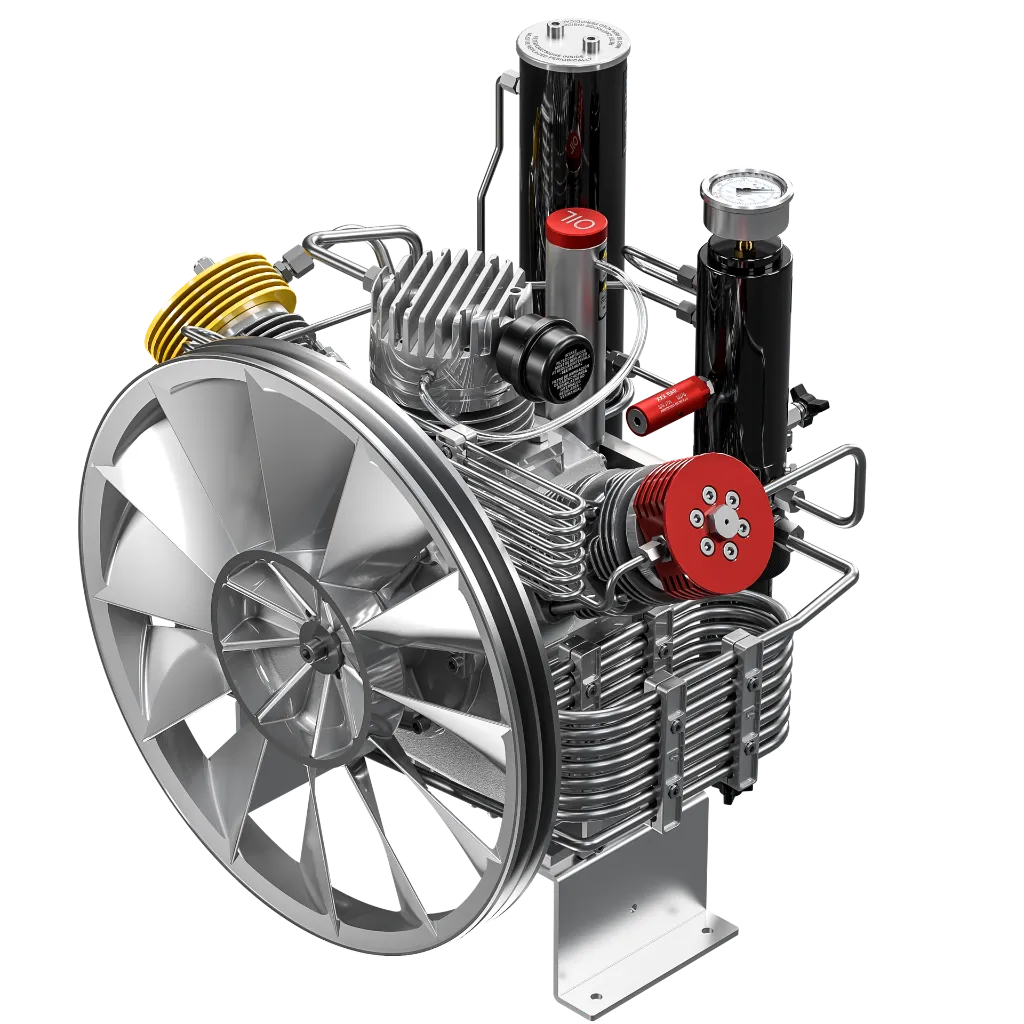

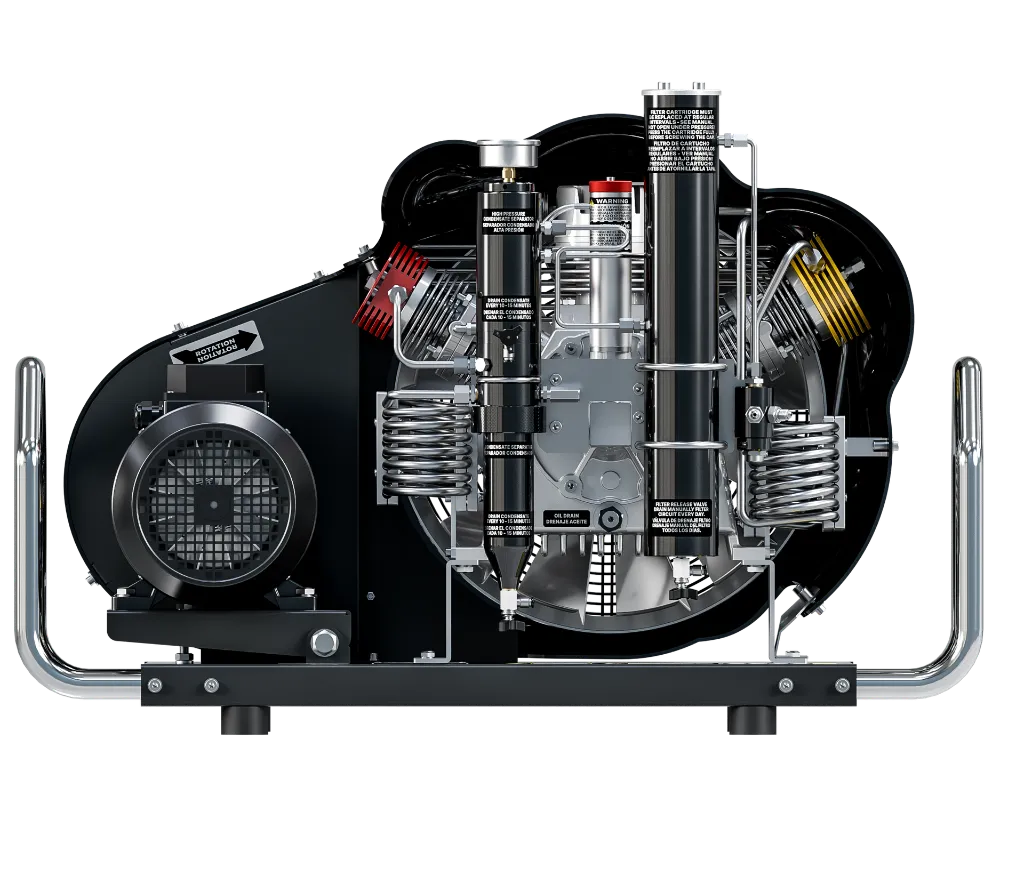

The SMART range offers the hardwearing mid-range pump unit and in this instance matched with a robust single-phase motor. The compressors are practical and portable. Available option of remote panel with interstage pressure gauges, hour meter, adjustable pressure switch, automatic condensate drain and autostop. There are 2 filling outlets with option of 232 Bar or 300 Bar filling.
Standard Equipment
- 2 off hoses with filling connections
- Pressure Maintaining Valve (PMV)
- Maxifilter filtration
CHARGING RATE
l/min - 125
m3/h - 7.5
cfm - 4.4
FILLING
TIME (10 Litre cylinder 0 -200 Bar(g))
16min
MOTOR POWER
3kW / 4Hp Single-phase electric
WORKING
PRESS. MAX.
bar - 330
psi - 4786
WEIGHT & DIMENSIONS
(W x D x H) 100 x 46 x 70 cm
Dry Weight - 93 kg
£ 0.00
£ 0.00
(Tax excluded)
-
COLOUR - Black
-
BRAND
-
DRIVE & MOTOR POWERS
